Query Performance Monitoring Dashboard

Article Overview​

Use this dashboard to analyze search operations on a selected Search Anywhere Framework cluster node. It shows current activity in the Query and Fetch phases, the state of scroll contexts, operation count and elapsed time, and related events from SME logs.

Dashboard Contents​

Global and Local Filters​

The dashboard provides the following controls:

  • Period sets the time range for viewing data
  • Node selects the node for search-load analysis
  • Time Interval sets the aggregation interval for time charts

Dashboard Metrics​

Top Search Activity Indicators​

Example of top indicators

PanelShowsWhen to Review
QueryThe number of active operations in the search phase. This phase processes query conditions, filters, sorting, and aggregations.At the start of search-latency diagnostics, especially when query execution time grows or queues appear in the search pool.
FetchThe number of active operations that retrieve found documents and form response data.When latency may be related to a large response, expensive _source, highlighting, many fields, or disk reads.
ScrollThe number of active operations that sequentially export data through scroll.When bulk exports, integration jobs, or long reads of large document sets are running.

Normal operation indicators: the number of current operations changes with the load and returns to its usual range.

Compare sustained activity growth with operation duration, the search pool queue, CPU, and input/output metrics.

Top indicator values are useful for a quick assessment of current activity, but compare them with time charts, logs, and node resource metrics before drawing conclusions.

Query Phase Metrics​

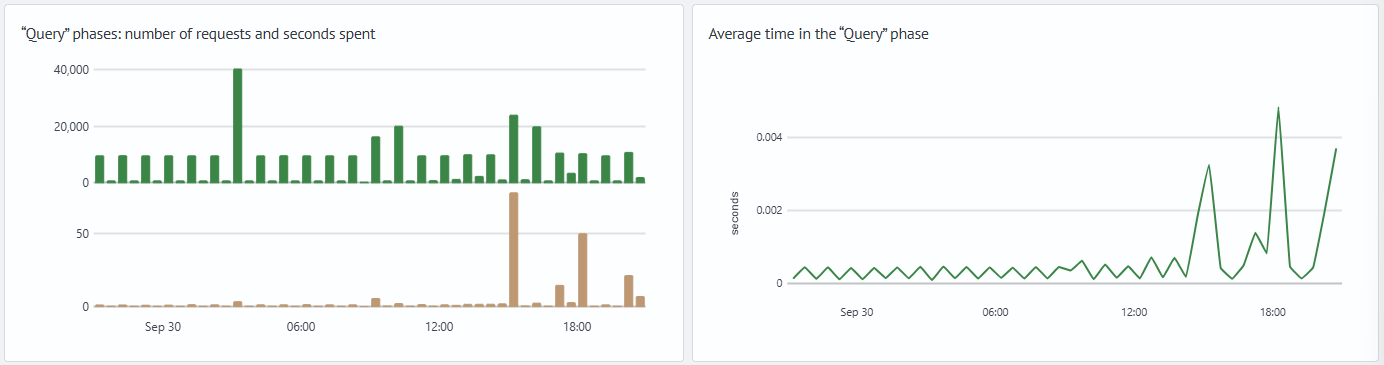

Example of Query phase panels

PanelShowsWhen to ReviewNormal Operation IndicatorsWhen Further Investigation Is Needed
Query Phase: Request Count and Time Spent, SecondsThe number of Query operations for the interval and their total execution time.To determine whether search load grew or individual operations started taking longer.Total time changes proportionally to the number of shard operations.If total time grows faster than the number of operations, check the average duration, query composition, and node resources.
Average Query Phase TimeThe calculated average duration of one Query operation for the interval.When a large data volume, expensive filters, aggregations, scripts, a wide time range, or search across many shards is suspected.The value matches the usual level for a comparable query type and does not affect system stability.Sustained growth with a stable operation count can indicate higher resource consumption by one shard operation. Check queries, shard count, queues, and resources to identify the cause.

If average Query time grows, review operation composition in the Cluster Query Count by Type dashboard. There you can review search actions, long-running tasks, and relationships between child operations and the parent task ID. If growth coincides with queues or rejected operations in a thread pool, open the Node Resource Monitoring dashboard.

Fetch Phase Metrics​

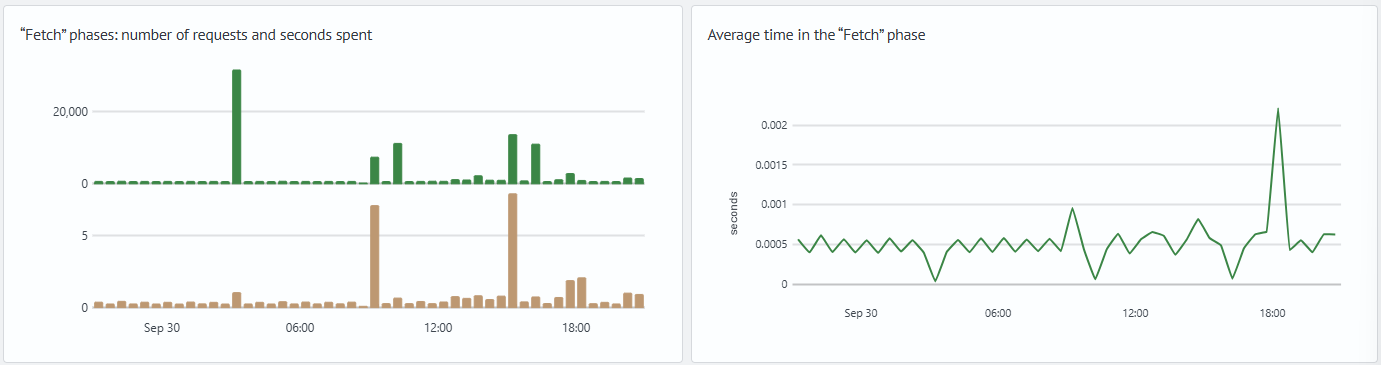

Example of Fetch phase panels

PanelShowsWhen to ReviewNormal Operation Indicators / When Further Investigation Is Needed
Fetch Phase: Request Count and Time Spent, SecondsThe number of Fetch operations for the interval and the total time spent retrieving response data.When the search phase has completed but retrieving documents takes a long time or a large volume of data is returned.Same as for the Query phase panels.
Average Fetch Phase TimeThe calculated average duration of one Fetch operation for the interval.When size is large, _source is expensive, highlighting is enabled, many fields are returned, or slow reads are observed.Same as for the Query phase panels.

If Fetch grows, compare the period with the Node Resource Monitoring dashboard: check CPU, memory, storage utilization, read and write volume, and search pool metrics. If heap or direct buffer usage grows, or GC pauses become longer, continue the investigation in the JVM Node Monitoring dashboard.

Scroll Operation Metrics​

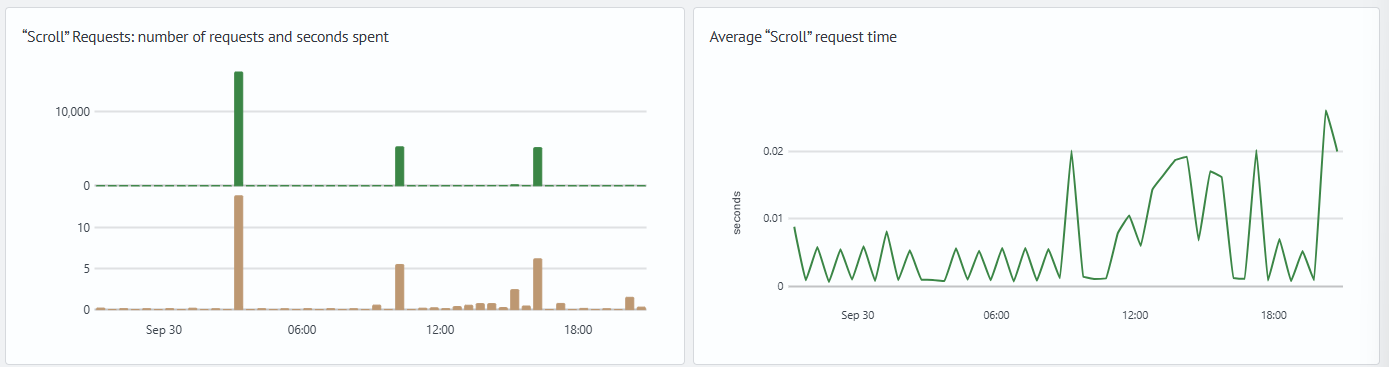

Example of Scroll operation panels

PanelShowsWhen to ReviewNormal Operation IndicatorsWhen Further Investigation Is Needed
Scroll Requests: Request Count and Time Spent, SecondsThe number of Scroll operations for the interval and the total time spent sequentially exporting data.To assess the load from bulk exports, reports, or integration reads.Changes match known exports and do not affect system state.Compare sustained growth in time or operation count with export volume, open contexts, input/output, and memory.
Average Scroll Request TimeThe calculated average duration of one Scroll operation for the interval.When exporting large data sets starts taking substantially longer or affects adjacent search operations.The value is comparable for exports with the same volume and structure.Assess growth against the requirements of the specific export and its effect on other queries. Growth alone does not prove a problem without data-volume context.

Review growing Scroll activity together with node resource metrics. In the Node Resource Monitoring dashboard, check CPU, memory, input/output, HTTP connections, file descriptors, and thread pool queues. If heap or direct buffer usage grows during the same period, review the JVM Node Monitoring dashboard.

Log Panels​

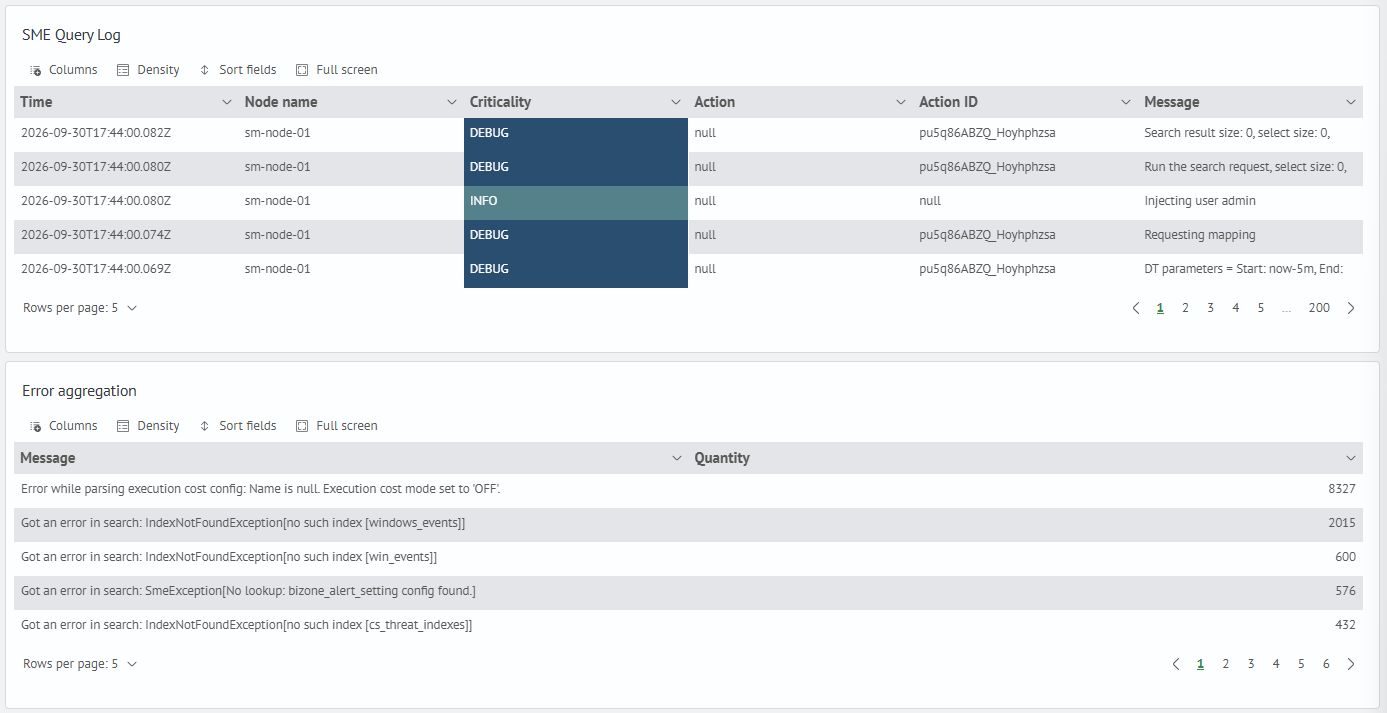

Example of logs

PanelShowsWhen to Review
SME Query LogEvents related to search operation execution: time, node, severity, action, action ID, and message.When you need to move from a chart to a specific query, client, error, or execution period.
Error AggregationRepeated warnings and errors grouped by a common message characteristic.To assess the frequency of a similar problem and choose events for detailed analysis.

Use logs after the charts identify the interval and affected nodes. If search errors coincide with a changed cluster state, reduced shard availability, or node loss, continue the investigation in the Cluster Health dashboard.

How to Read Time Metrics​

Query, Fetch, and Scroll metrics relate to shard-level operations. Therefore, they cannot be directly equated to the number of unique client queries or the full response latency seen by a client.

Analyze operation count and total time charts together:

  • if only operation count grows, load may have increased without slowing individual queries
  • if operation count is stable but total and average time grow, each operation has begun using more resources
  • if operation count, total time, and average time grow together, the node processes more operations and each one requires more time

Average time on charts is a calculated value for the selected interval. It helps find a problematic period, but does not replace analysis of a specific query, the number of affected shards, response parameters, node resources, and log events.

Important

Total shard operation time can accumulate in parallel across several shards and nodes. Do not interpret it directly as the response time of one client query.

Typical Scenarios​

Growing Calculated Search Operation Time​

Simultaneous growth in shard operation count, total time, and calculated average time requires further investigation. The dashboard does not identify the specific client query or the cause of the change. Growth may be related to query volume or complexity, the number of affected shards, response parameters, data distribution, or resource load.

The charts display the following signs:

  • the Query Phase: Request Count and Time Spent, Seconds panel shows simultaneous growth in the number of shard operations in the Query phase and their total time
  • the Average Query Phase Time panel shows an increase in calculated operation time. The dashboard does not define a universal acceptable threshold
  • the Fetch Phase: Request Count and Time Spent, Seconds and Average Fetch Phase Time panels show a similar change for Fetch phase operations
  • the Scroll Requests: Request Count and Time Spent, Seconds and Average Scroll Request Time panels show changes in the count and duration of Scroll operations. These panels do not show the number of open contexts

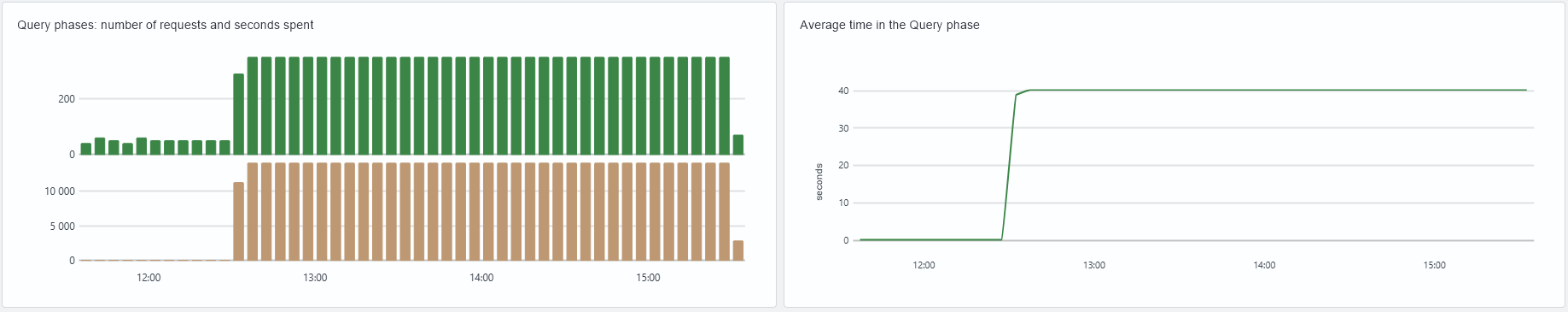

Growing Query shard operation time

Growing Fetch shard operation time

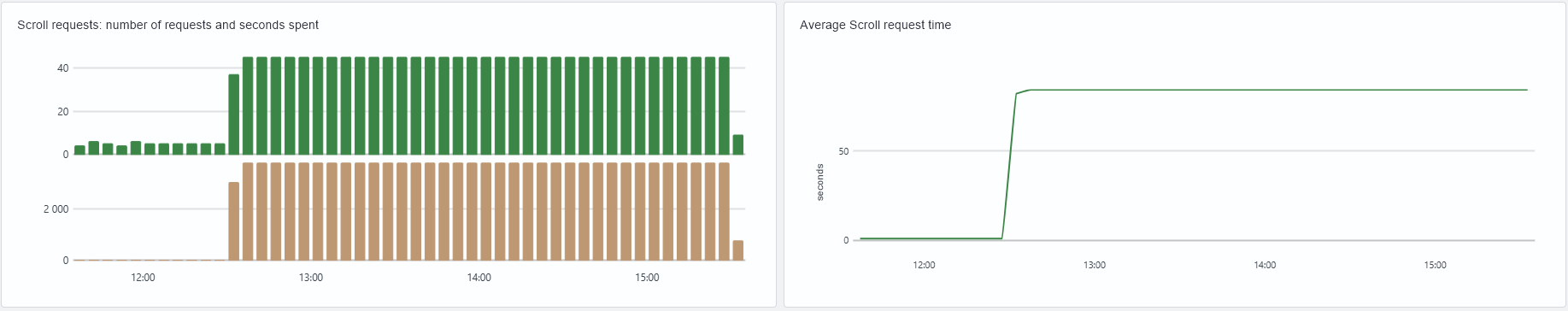

Growing Scroll shard operation time

After 12:30, the charts show growth in shard operation count and total execution time. The calculated average time is about 40 seconds for Query, 32 seconds for Fetch, and 80 seconds for Scroll. This indicates sustained growth in shard search operation time, but does not prove that all three panels refer to one client query or one scroll session.

For diagnosis:

  1. Record the growth interval and selected node
  2. In the SME Query Log panel, manually filter records for this node by the Node Name column because the global Node filter does not affect the log
  3. Compare the period with the Cluster Query Count by Type dashboard
  4. Review CPU, memory, read activity, and search pool metrics in the Node Resource Monitoring dashboard
  5. For a specific query, review the number of affected shards, size, _source, aggregations, and the execution profile
Note

In a multi-tier architecture, start with the nodes that host shards of the requested indices. Depending on the time range and data distribution, these can be hot, warm, or cold tiers. Compare nodes with the same role and configuration.

Non-zero shard search metrics on a master node do not by themselves prove a configuration error. First check combined roles, shard placement, and routing.

Single Query Statistics​

The dashboard shows search load on nodes, not the stages of a single search.
