Data Storage

Description

The Data Storage section of the module is intended to monitor the data relating to the ESXi host datastores and the avaliable disk space.

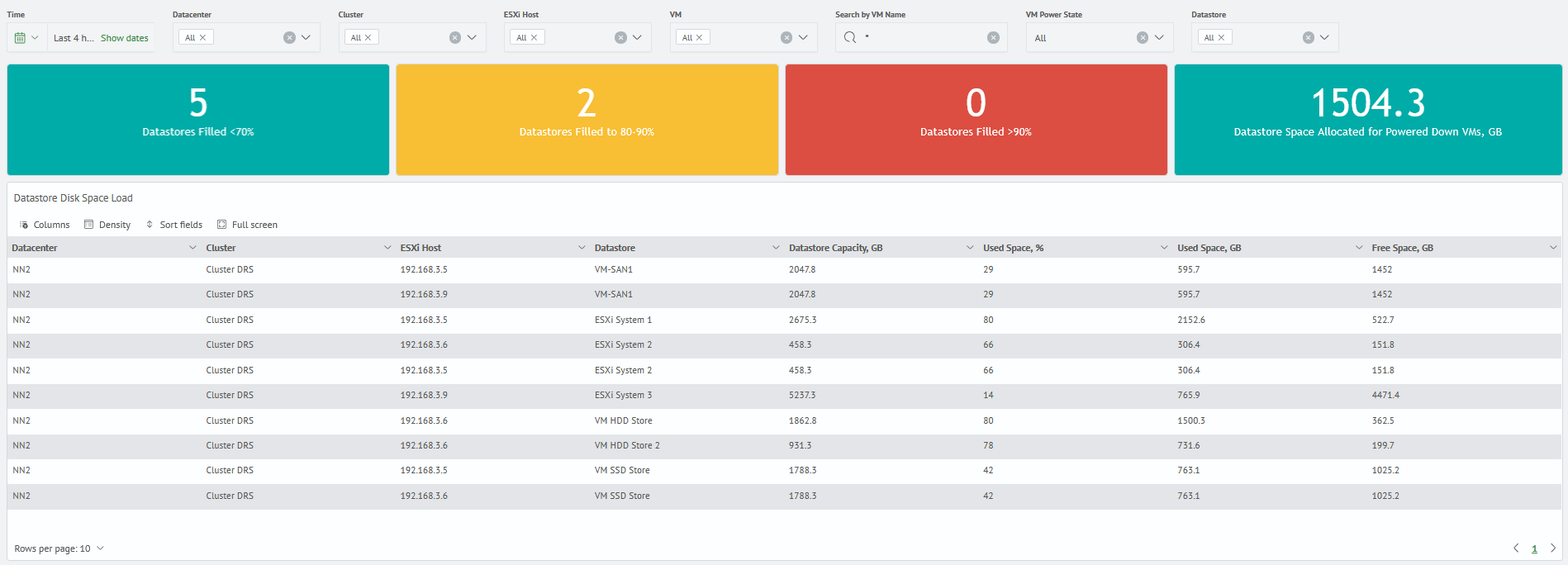

VMware monitoring disk

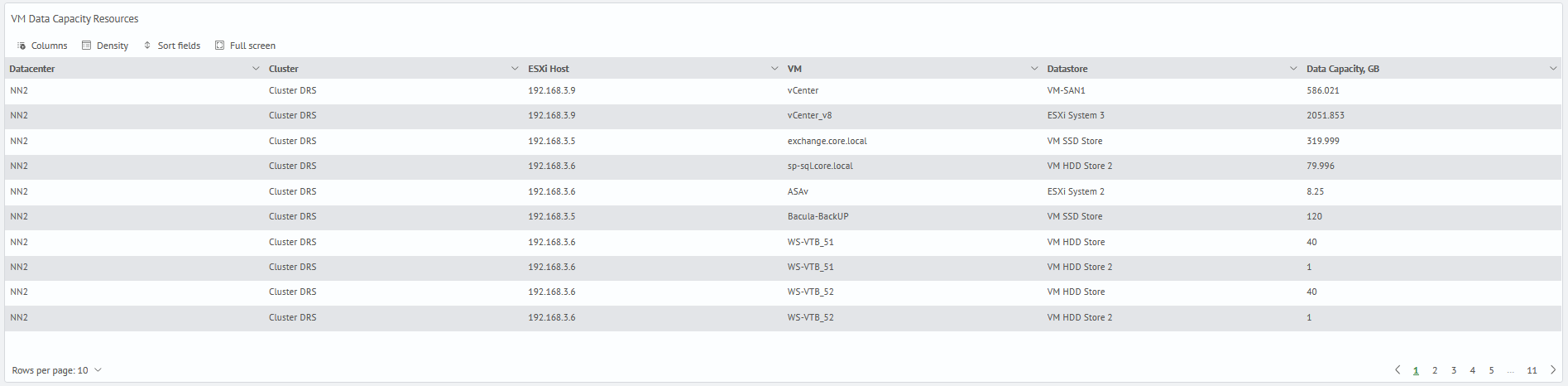

VMware monitoring disk

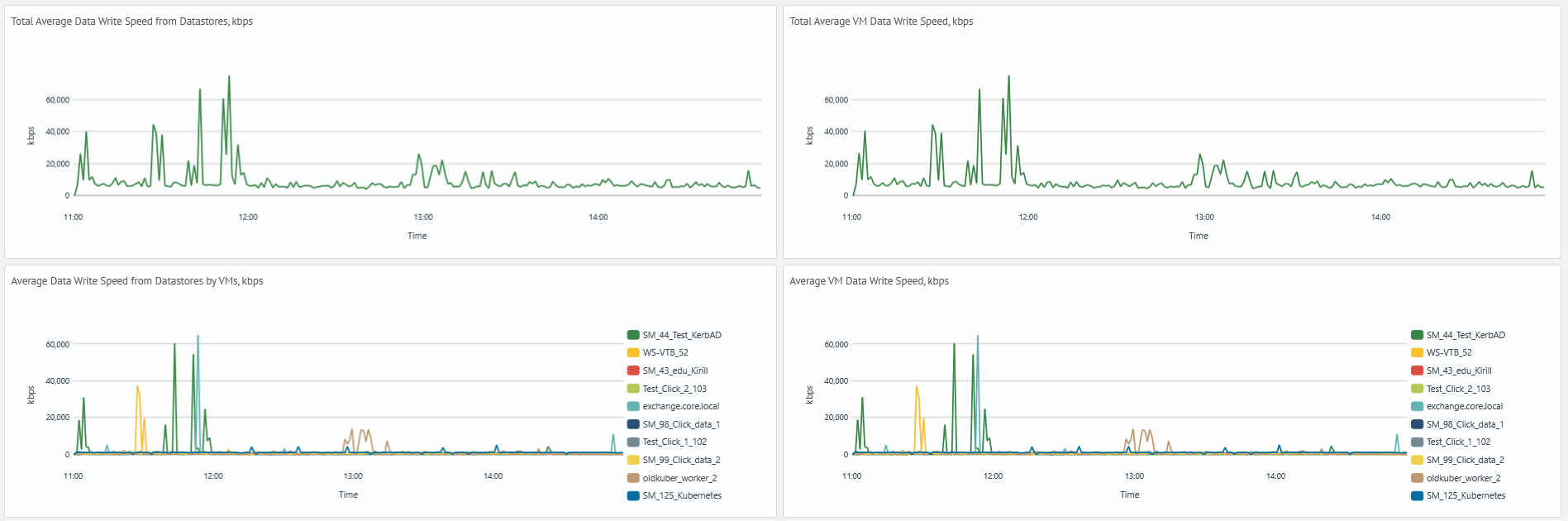

VMware monitoring disk

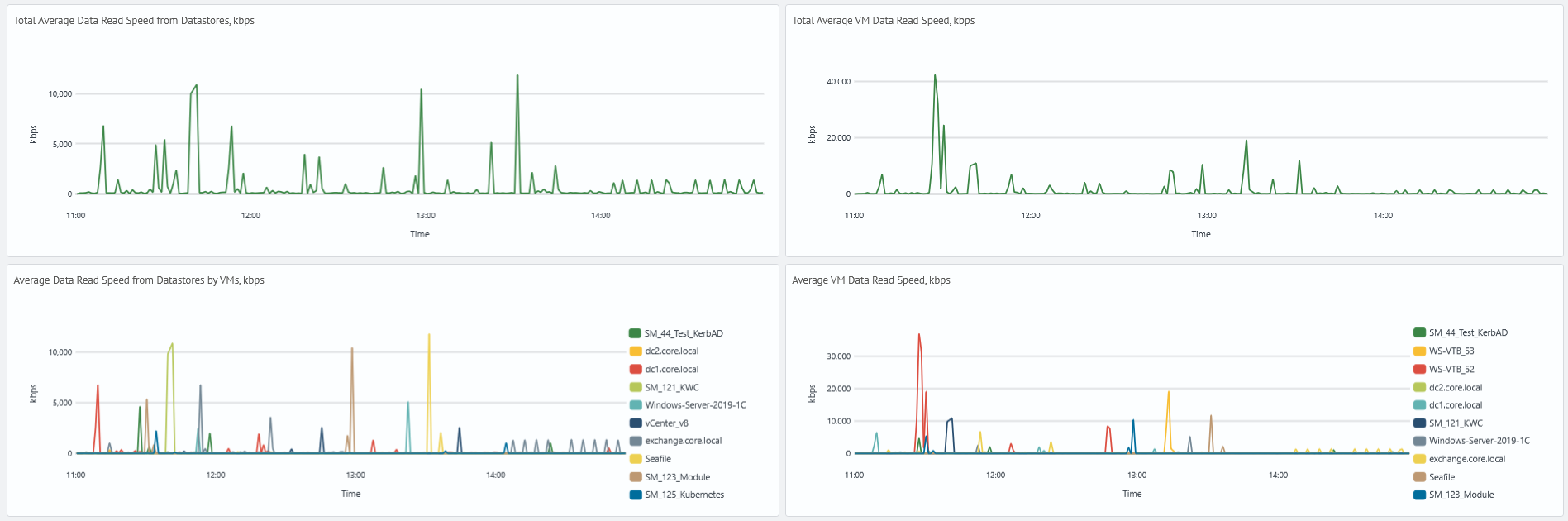

VMware monitoring disk

Displayed Data

  • ESXi host datastores filled less than 70%
  • ESXi host datastores filled in between 80-90%
  • ESXi host datastores filled more than 90%
  • total amount of disk space on all datastores in the cluster for powered off virtual machines
  • datastore utilization
  • datastore disk space allocation for virtual machines
  • chart of the total average data read speed from datastores
  • chart of total average data read speed per virtual machine disk
  • chart of the average data read speed from datastores, per virtual machines
  • chart of the average disk data read speed of virtual machines, per virtual machines
  • chart of the total average data write speed from datastores
  • chart of total average data write speed per virtual machine disk
  • chart of the average data write speed from datastores, per virtual machines
  • chart of the average disk data write speed of virtual machines, per virtual machines

Dashboard List

  • Datastores Filled < 70%
  • Datastores Filled to 80% - 90%
  • Datastores Filled > 90%
  • Datastore Space Allocated for Powered Down VMs, GB
  • Datastore Disk Space Load
  • VM Data Capacity Resources
  • Total Average Data Read Speed from Datastores, kbps
  • Total Average VM Data Read Speed, kbps
  • Average Data Read Speed from Datastores by VMs, kbps
  • Average VM Data Read Speed, kbps
  • Total Average Data Write Speed from Datastores, kbps
  • Total Average VM Data Write Speed, kbps
  • Average Data Write Speed from Datastores by VMs, kbps
  • Average VM Data Write Speed, kbps
