Aggregation Rules

An aggregation rule differs from a declarative rule in how the threshold is evaluated. A declarative rule compares the threshold with the number of events that matched the condition. An aggregation rule compares it with an aggregate value calculated from the events in the window, such as a sum, average, or distinct count.

Correlation

On the Correlation tab, define the window in which the correlator collects data for aggregation:

1. In Pre-filter, enter an expression in the SAFL (RTC) dialect. An event must match this expression to be included in the aggregation window
2. Select Grouping Fields, which are field chips used to maintain a separate aggregate. A separate set of metrics is calculated and a separate firing is generated for each combination of these field values
3. Set the Time Window using the Duration and Unit fields. This is the interval during which the correlator accumulates events for metric calculation
4. If necessary, enable Suppression Settings, and complete the Duration and Unit fields in the Suppression section that appears, as for a declarative rule. See Declarative Rules. After a firing, subsequent firings for the same group are suppressed for the specified period

Metrics

In Metrics, configure one or more aggregates whose values determine whether the rule fires:

1. Click Metric to add a metric section
2. Enter a Name. The metric value is available under this name in Firing Condition and in the firing document
3. Select a Function. The available functions are listed below
4. Specify a Field, which is the event field used by the function. Field is optional only for count and rate. If it is specified for these functions, only events containing that field are included in the calculation
5. If necessary, enter a Filter, which is a metric-specific event selection condition in the SAFL (RTC) dialect. If no filter is specified, the metric is calculated from all events that passed Pre-filter

Aggregation Functions

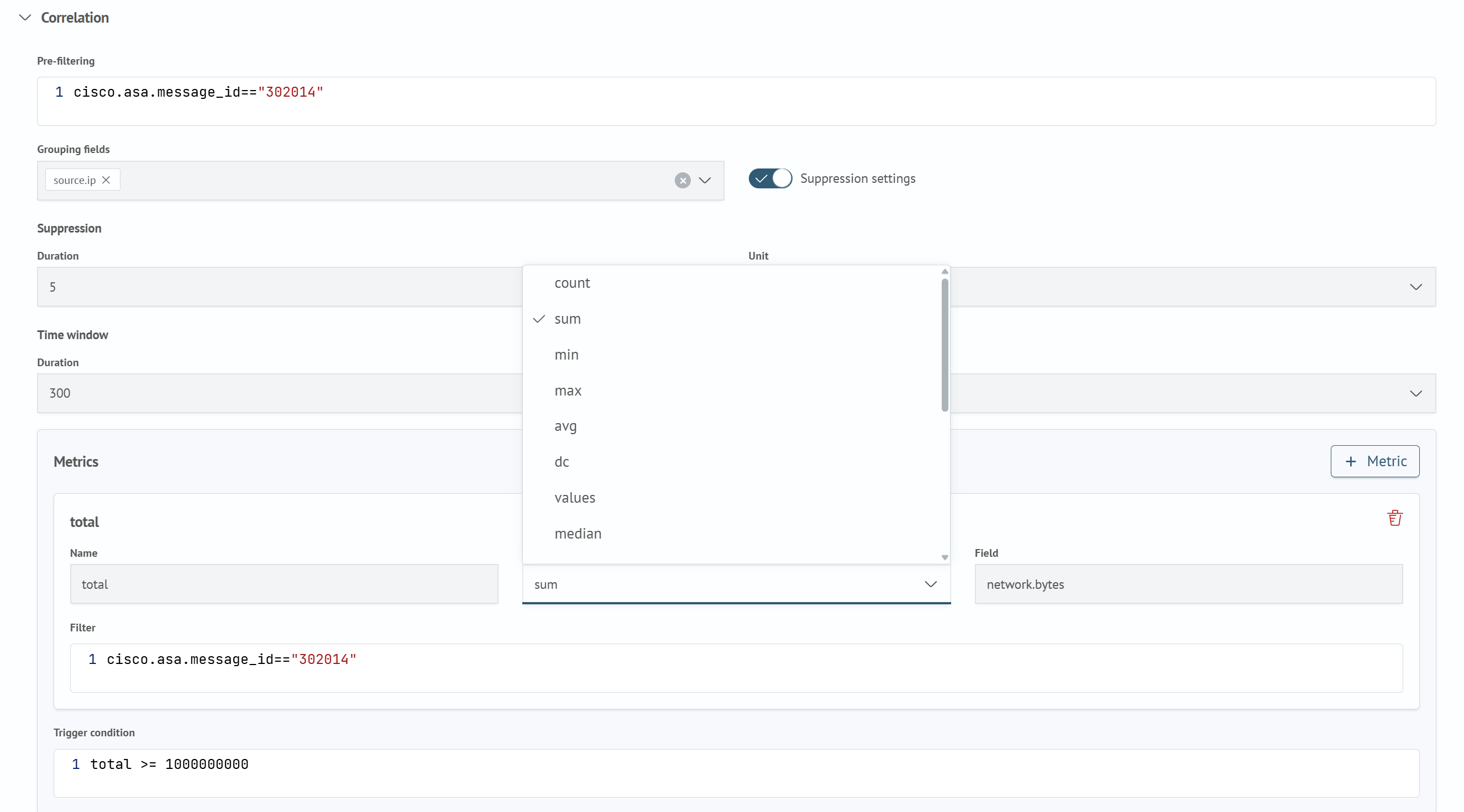

The Function field offers functions in the following order:

Function	What it calculates	Field	Result type
count	the number of events in the window	not required	integer
sum	the sum of the field values	required	number
min	the smallest field value	required	number
max	the largest field value	required	number
avg	the average field value	required	number
dc	the number of distinct field values	required	integer
values	the list of distinct field values	required	list
median	the median of the field values	required	number
p95	the 95th percentile of the field values	required	number
p99	the 99th percentile of the field values	required	number
variance	the variance of the field values	required	number
stddev	the standard deviation of the field values	required	number
first	the field value from the first event in the window	required	as in the event
last	the field value from the last event in the window	required	as in the event
earliest	the smallest numeric field value, typically the earliest timestamp	required	number
latest	the largest numeric field value, typically the latest timestamp	required	number
rate	the average event frequency: the number of events divided by the window length in seconds	not required	number

Differences that matter when choosing a function:

• first and last take the field value as is, in the order the events arrive, and work with any type. earliest and latest compare values as numbers and return the extremes, so they apply to timestamps and other numeric fields but not to strings
• min and max produce the same result as earliest and latest; the separate names exist to keep rules over time fields readable
• events in which the field is absent or cannot be converted to a number are excluded from numeric function calculations
• the number of distinct values that dc and values track per group is limited by the correlation.max_aggregation_set_per_group cluster setting (default: 100000). See Cluster Settings. Once the limit is reached, new values are not counted

Firing Condition

In Firing Condition, enter an expression that uses metric names, for example, total >= 1000000000. It is evaluated after the window metrics have been calculated and determines whether a firing is generated.

The condition uses the metric namespace

Firing Condition is evaluated against the names specified in the Name field of each metric, not against event fields. The field mapping described in Rules does not apply to this condition.
