Coverage Matrix

Description​

The Coverage Matrix for MITRE ATT&CK is used to assess how well the current security system covers relevant techniques and tactics. The Coverage Matrix can be used for the following purposes:

  • evaluating the current security level of the organization
  • identifying security gaps
  • developing recommendations for improving security

Usage​

To start using the coverage matrix, select the Coverage Matrix item in the Main Menu under the MITRE ATT&CK section. The matrix interface looks like this:

Matrix interface

Functional Features​

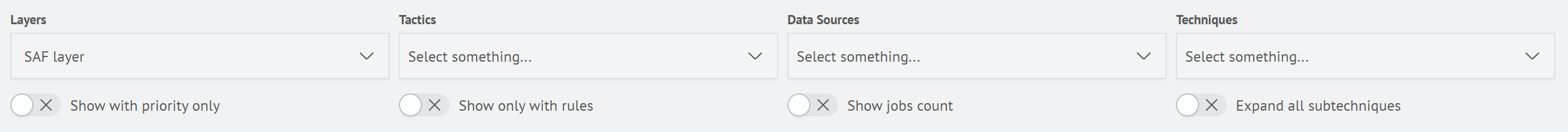

Control Panel​

Control Panel

  • Layers - select the layer in which priority settings are configured. Layers are pre-created through the layer editor
  • Tactics - select the list of tactics for which settings are required
  • Data Sources - select the list of data sources that characterize the area of potential threat occurrence
  • Techniques - select the list of necessary techniques for priority settings
  • Show with priority only - display only those techniques for which a priority is set in the Priority Matrix
  • Show jobs count - display the number of rules covering a given technique

Filtering​

Filtering of techniques in the matrix is done similarly to the Priority Matrix.

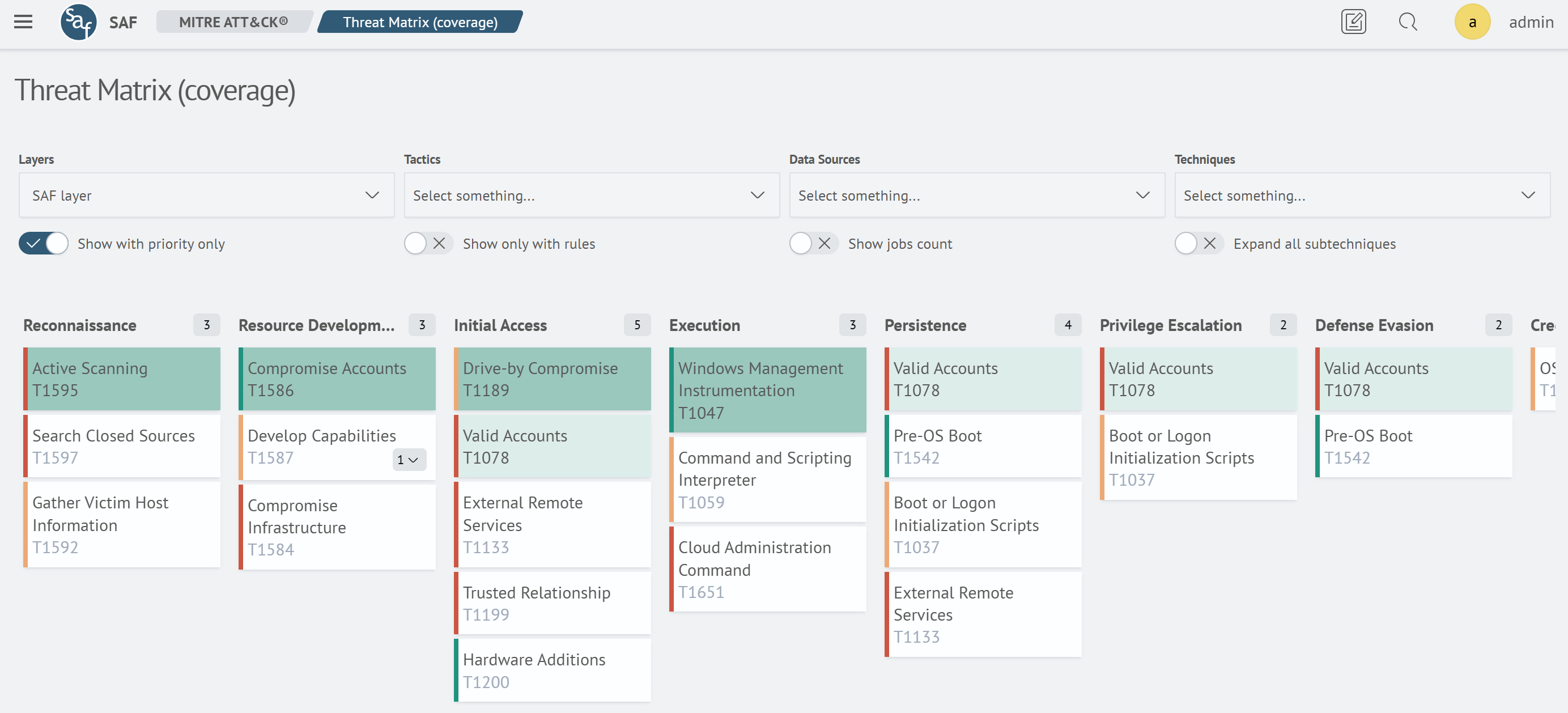

Show with priority only​

When this filter is enabled, only tasks that have a defined priority are displayed.

Show with priority only

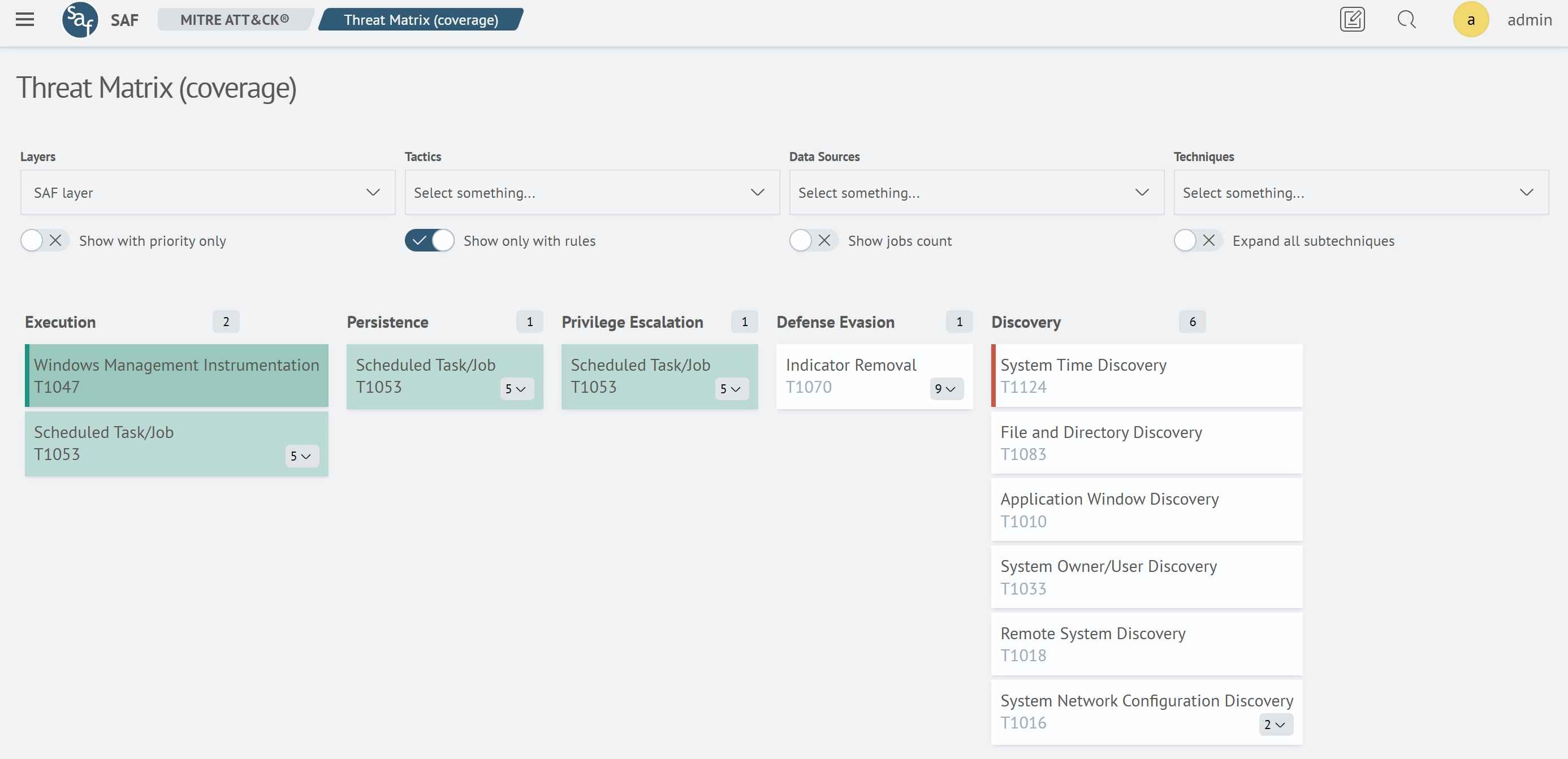

Show Only With Rules​

When this filter is enabled, only tasks that have defined rules in the Task Scheduler are displayed.

Show Only With Rules Filter

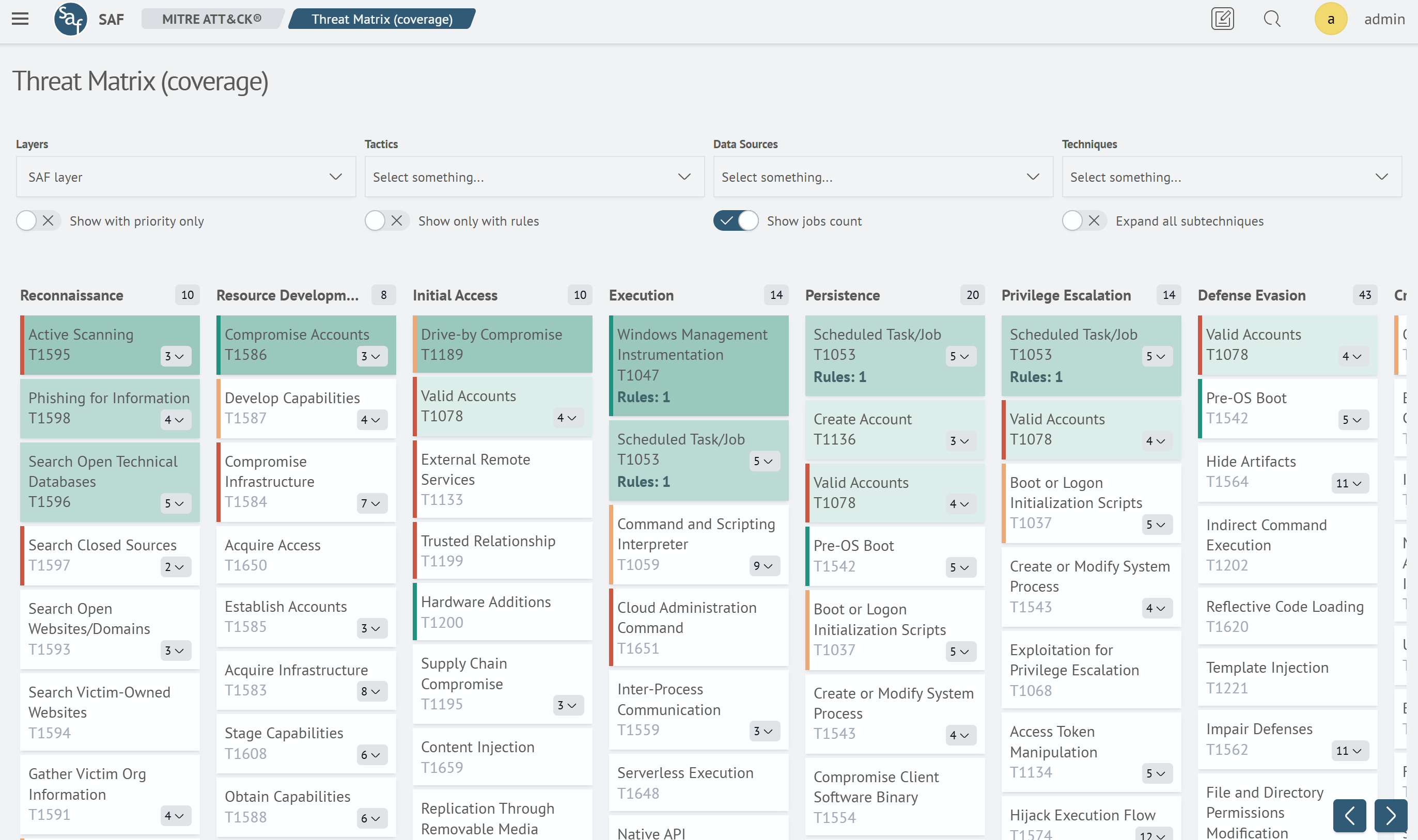

Show jobs count​

When this filter is enabled, the number of rules associated with a technique or sub-technique is displayed.

Show jobs count

Coverage Settings​

Coverage settings are available in the detailed information view window for a technique. If the coverage level is changed for a sub-technique, there is an option to update the parent technique using the Update parent option:

Changing the coverage level of a technique
