ReplicaSets

Description

The ReplicaSets section of the module is intended to monitor the data related to the various types of ReplicaSets of the Kubernetes cluster.

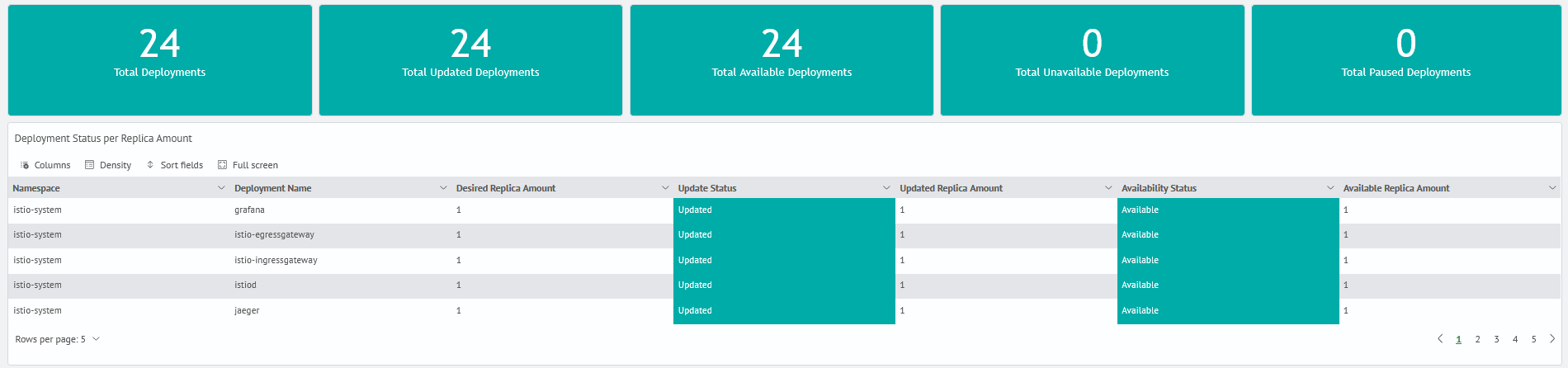

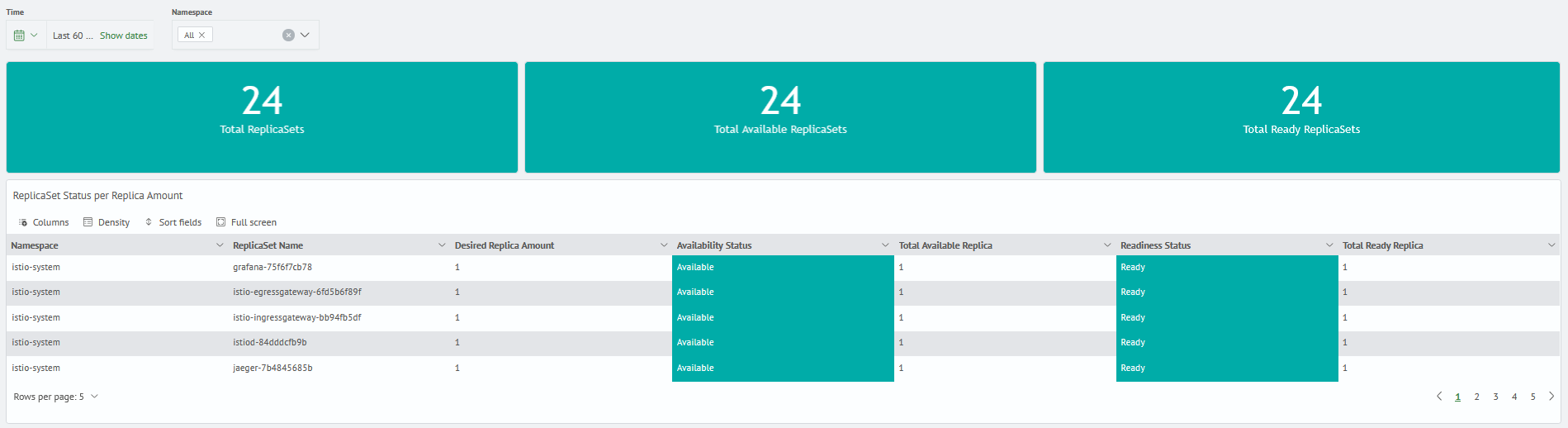

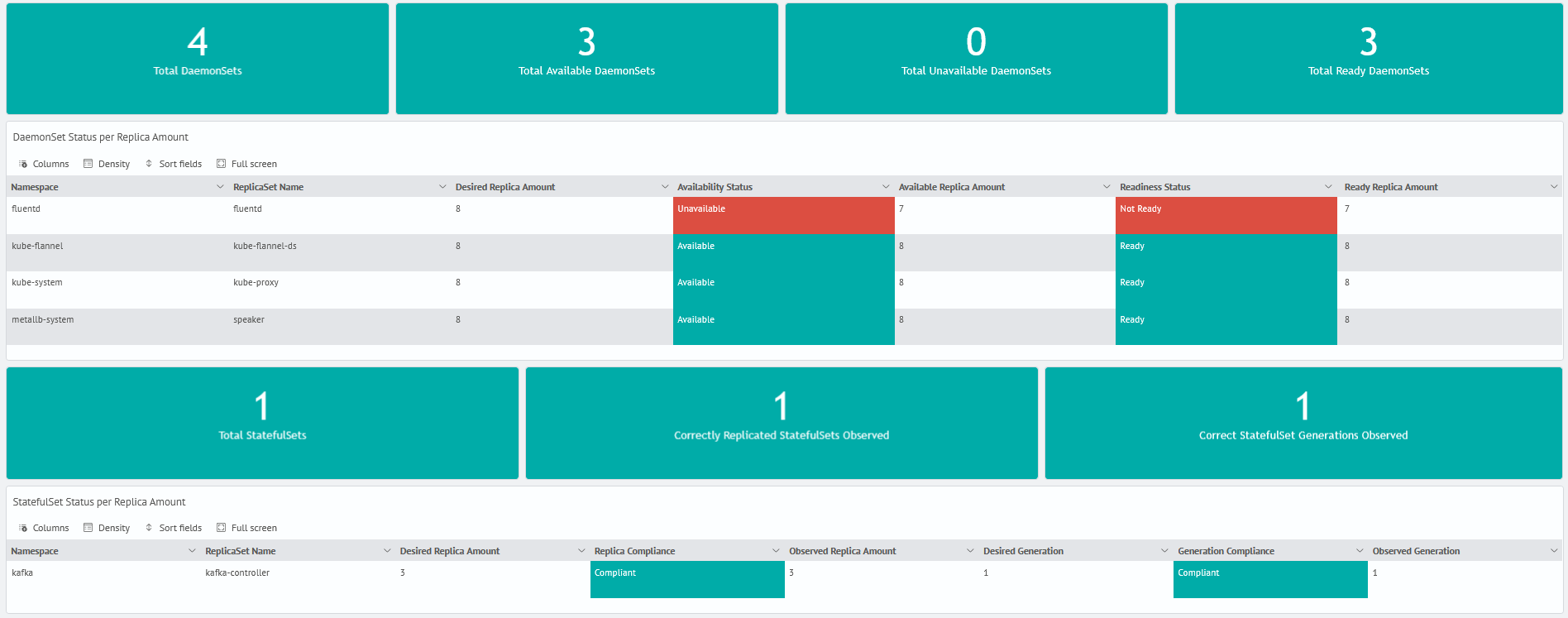

Kubernetes monitoring kubernetes replicas

Kubernetes monitoring kubernetes replicas

Kubernetes monitoring kubernetes replicas

Displayed Data

  • total number of ReplicaSets, DaemonSets and StatefulSets on the cluster
  • number of available and ready ReplicaSets on the cluster
  • number of deployments in different states on the cluster (updated, available, unavailable, paused)
  • number of DaemonSets in different states on the cluster (available, unavailable, ready)
  • number of StatefulSets on the cluster in correct replication states and in correct generations observed
  • information about current replication state of every type of ReplicaSet on the cluster

Dashboard List

  • Total ReplicaSets
  • Total Available ReplicaSets
  • Total Ready ReplicaSets
  • ReplicaSet Status per Replica Amount
  • Total Deployments
  • Total Updated Deployments
  • Total Available Deployments
  • Total Unavailable Deployments
  • Total Paused Deployments
  • Deployment Status per Replica Amount
  • Total DaemonSets
  • Total Available DaemonSets
  • Total Unavailable DaemonSets
  • Total Ready DaemonSets
  • DaemonSet Status per Replica Amount
  • Total StatefulSets
  • Correctly Replicated StatefulSets Observed
  • Correct StatefulSet Generations Observed
  • StatefulSet Status per Replica Amount
