Throughput

Description​

The Throughput section of the module is intended to monitor the throughput capability of the cluster. This includes request handling rates for various components of the cluster (request creation, read and write operations, replication) and data traffic speeds in KBps for message handling and transfer.

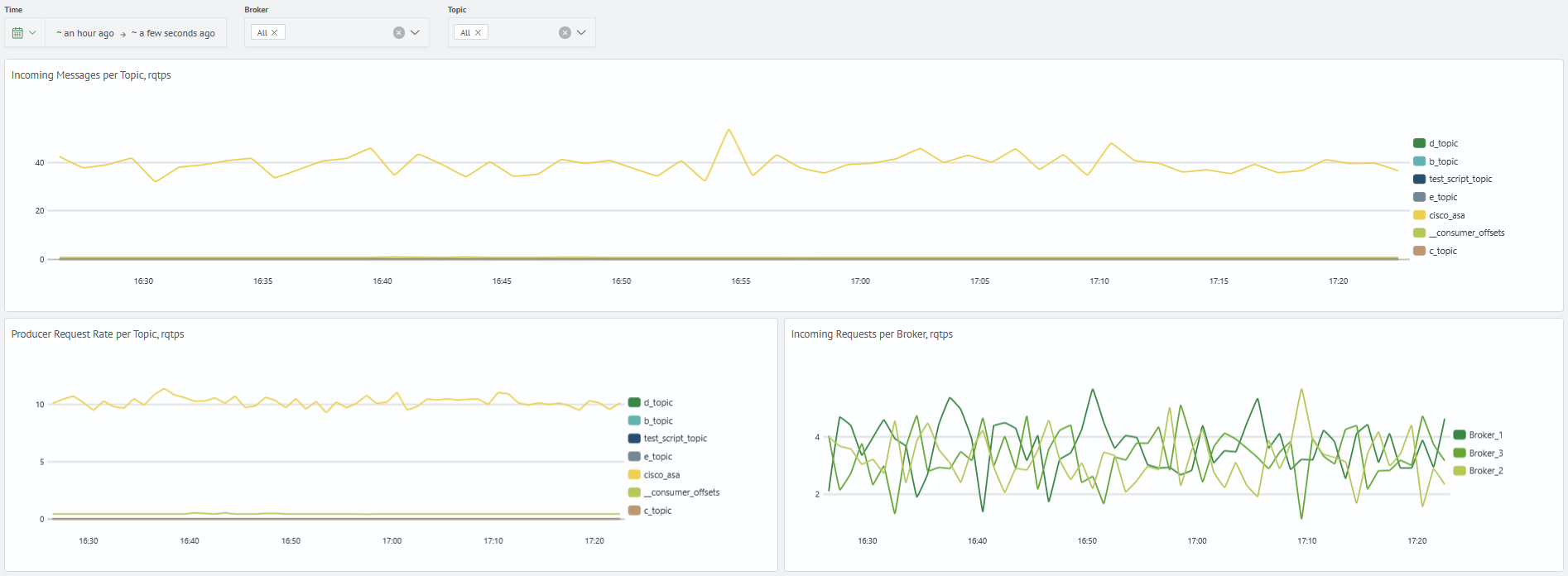

Kafka monitoring throughput

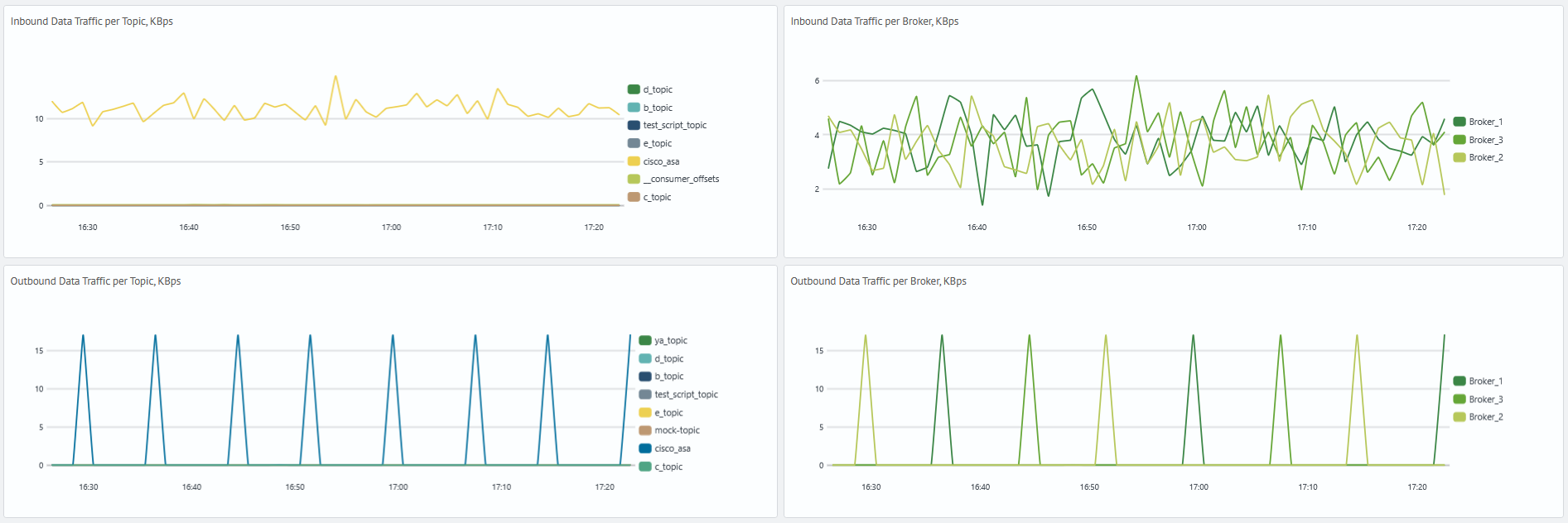

Kafka monitoring throughput

Displayed Data​

  • number of topic messages within a set interval
  • request rates per every broker on the cluster
  • producer request rates per every topic
  • total bytes recieved by the brokers from producers and other brokers during the replication process
  • total bytes recieved by the topics from producers and other brokers during the replication process
  • total bytes written to broker by the producers
  • total bytes written to topic by the producers

Dashboard List​

  • Incoming Messages per Topic
  • Incoming Requests per Broker
  • Producer Request Rate per Topic
  • Inbound Data Traffic per Topic
  • Inbound Data Traffic per Broker
  • Outbound Data Traffic per Topic
  • Outbound Data Traffic per Broker
