Metrics List

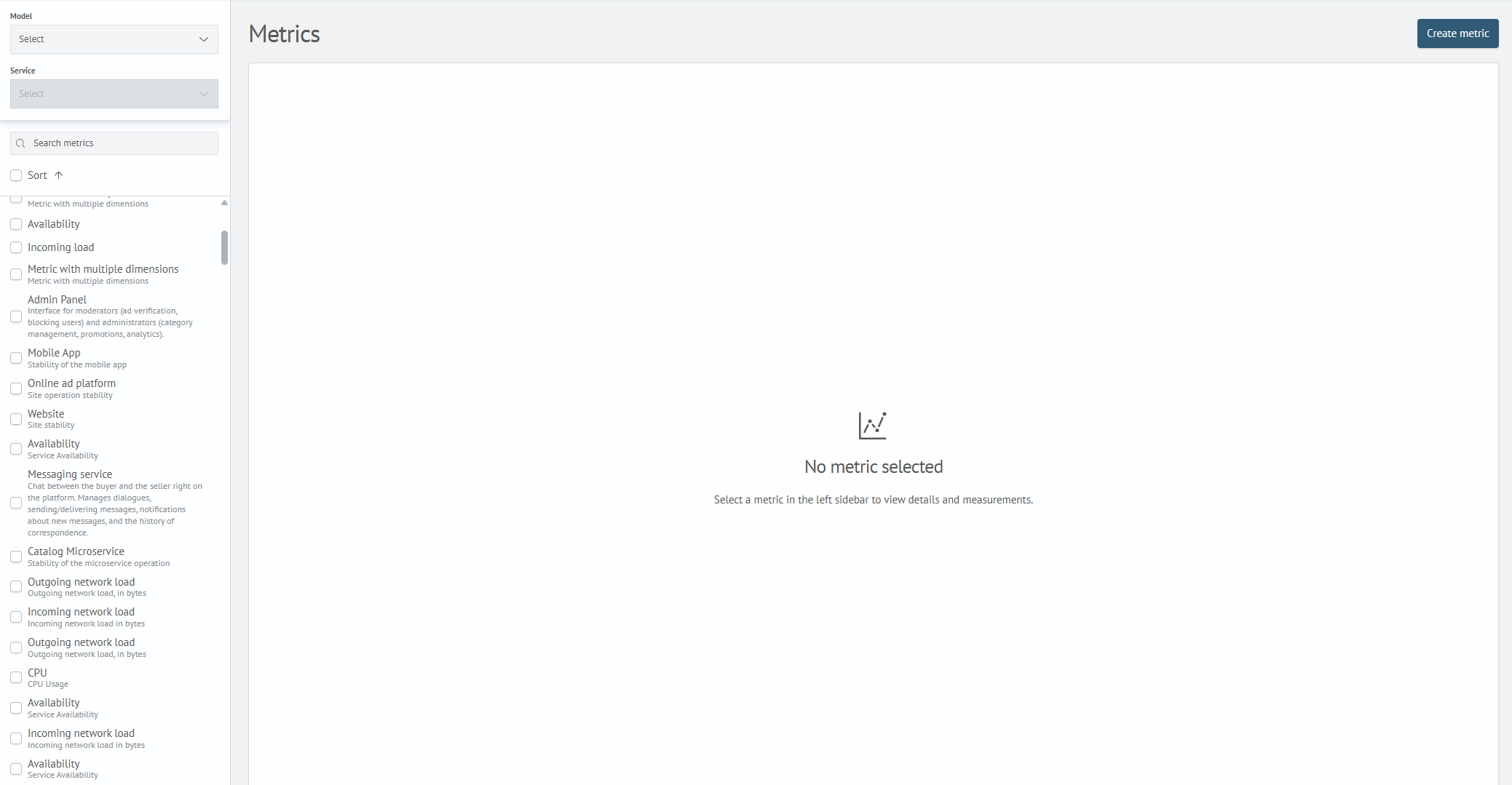

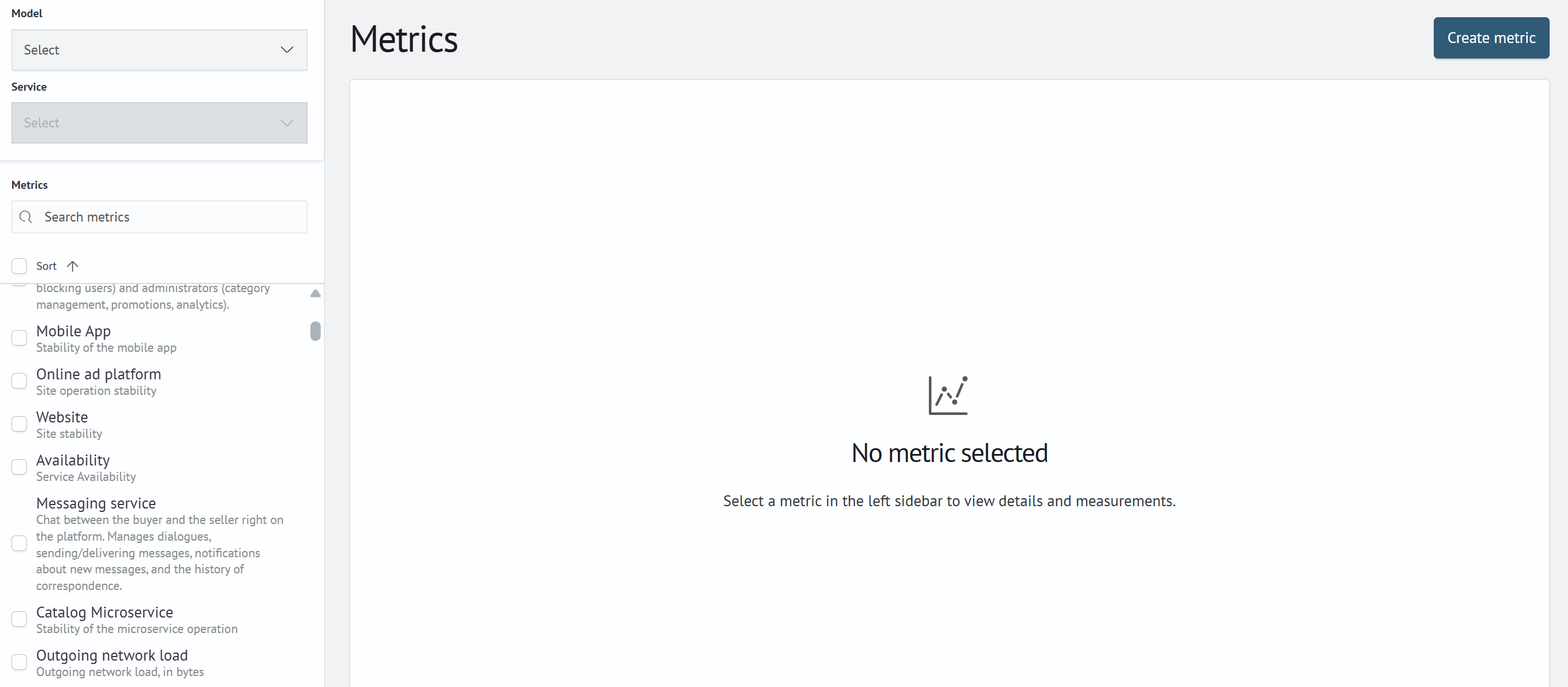

The metrics page presents a table of existing metrics:

The table can be sorted by metric name, filtered using the Search metrics input field, or using filters for metric binding to Model and Service. After selecting a model, service selection for that model becomes available.

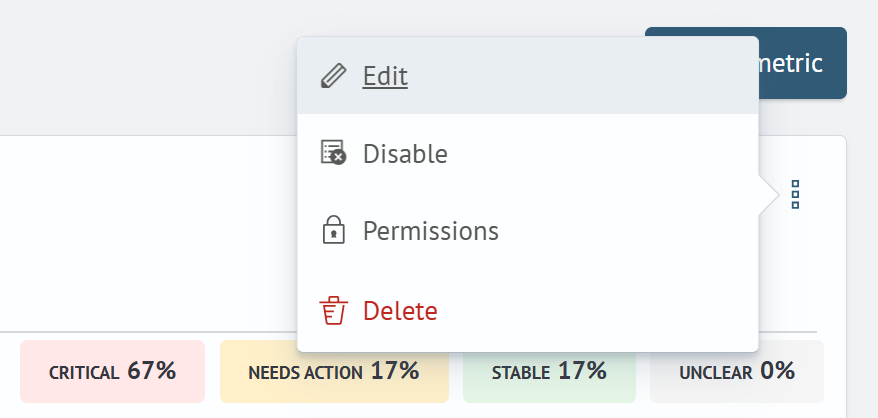

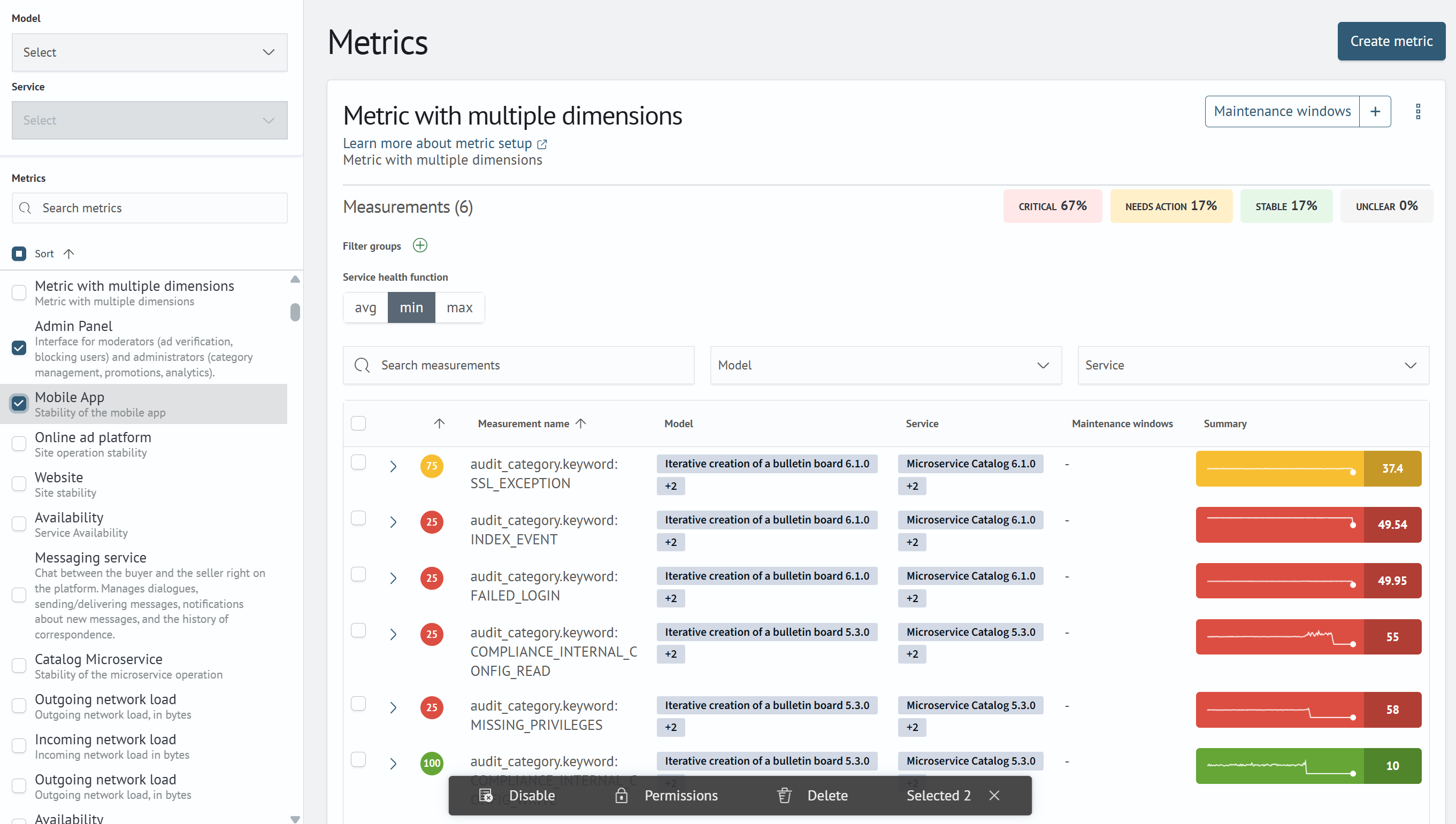

When selecting metrics through checkboxes or selecting a metric, the following actions are available:

  • Enable/Disable - enable/disable data collection for the metric
  • Delete - delete the metric

Metric Dimensions​

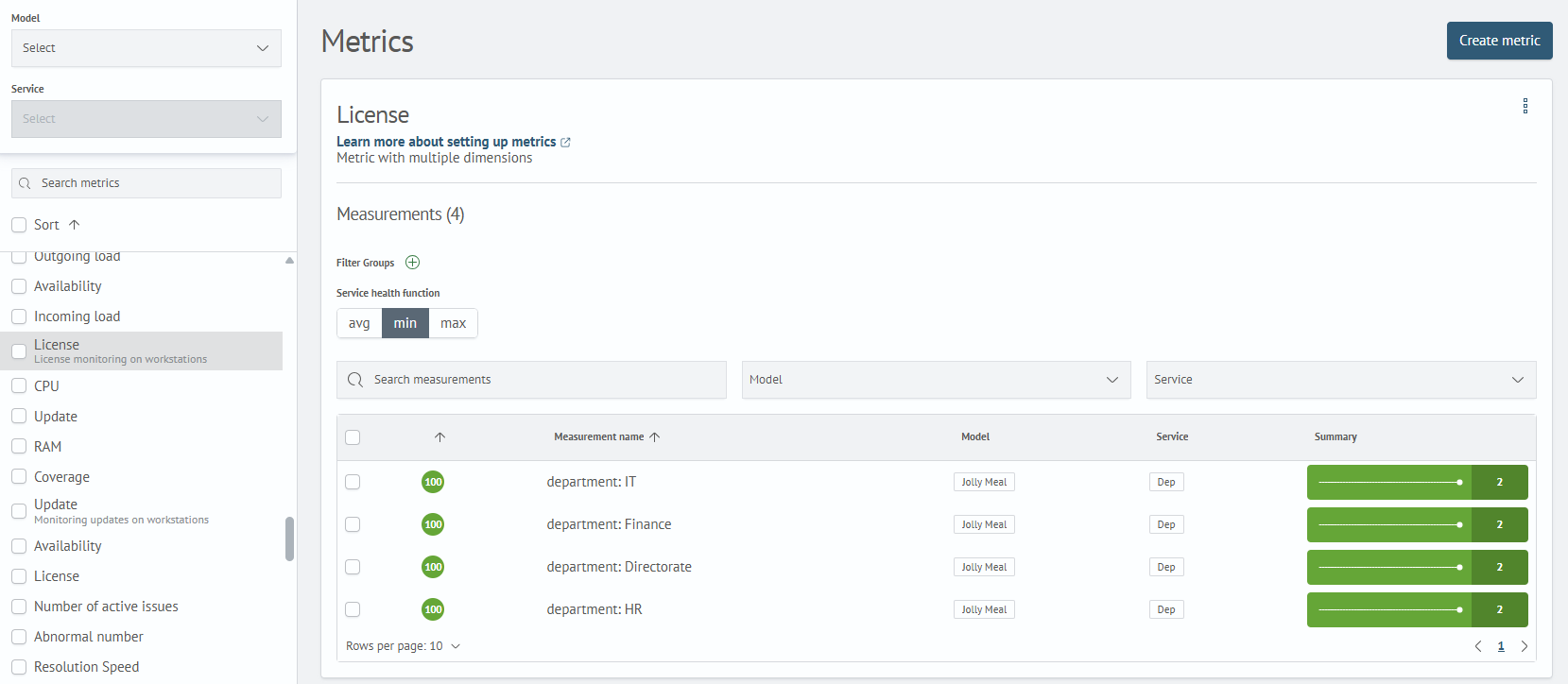

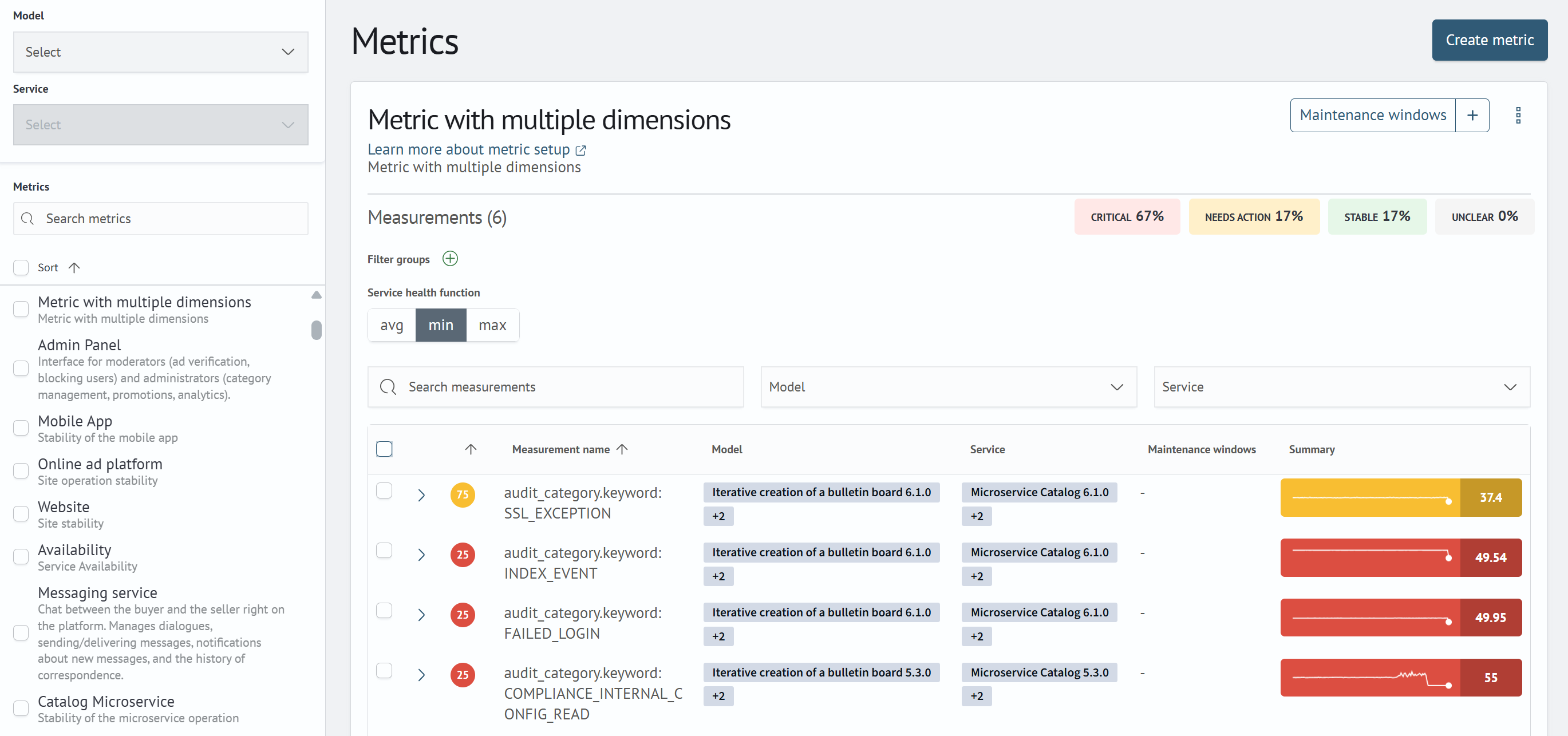

To view metric dimensions, you need to click on the metric:

info

Dimensions for a metric will be available if dimension settings are specified in the metric parameters

Binding Dimensions​

If there are dimensions for a metric, they can be bound to a service in the following ways.

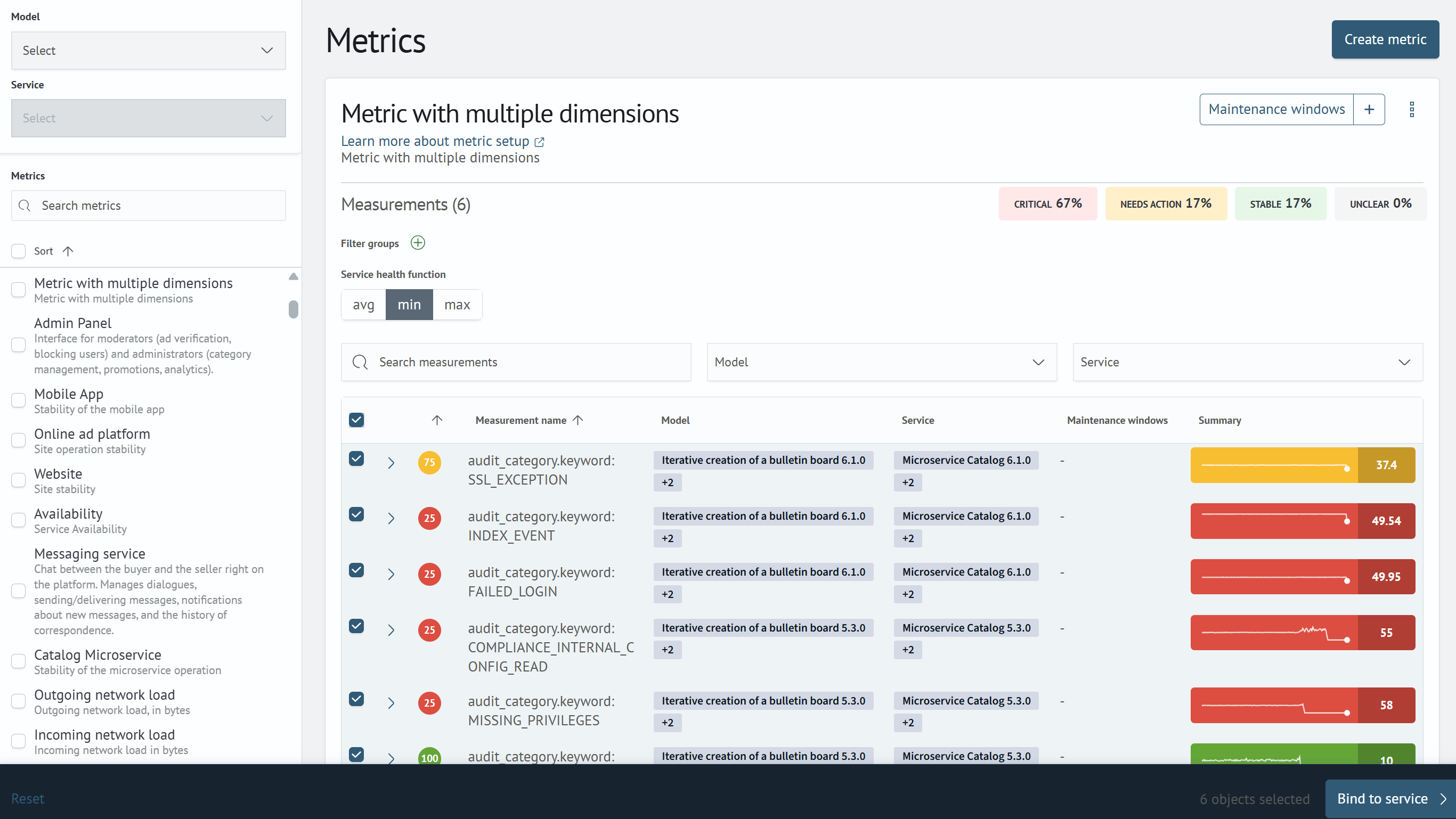

Select dimensions through:

  • checkbox in the dimensions list
  • setting up filter groups by field - value combination

Fill in the Function for determining overall state with one of the following values:

  • avg
  • min
  • max

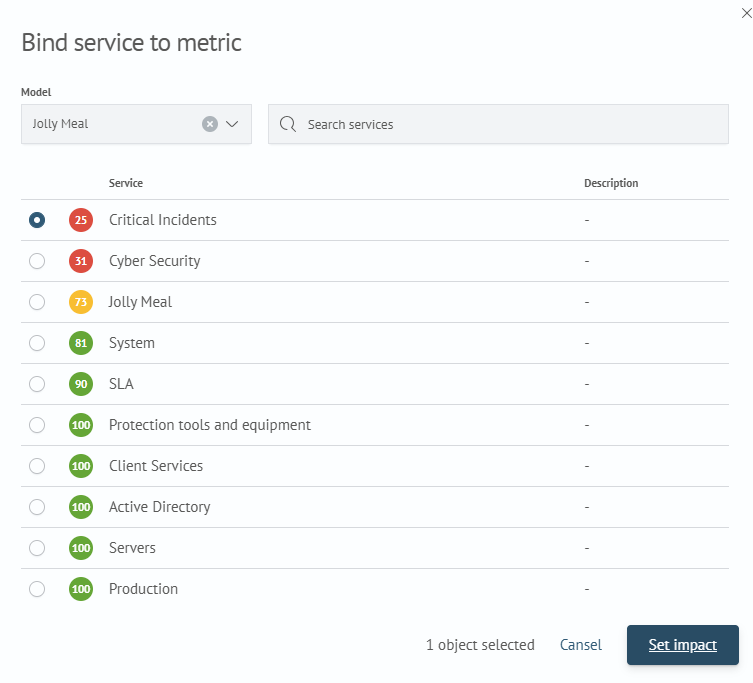

A Bind to service button will appear, displaying the service selection screen:

Select the service and complete the setup by clicking Set Influence. If necessary, configure the influence of the new service metric.
