Setting up and using limits

Limits restrict Search Anywhere Framework resources used for processing requests.

Setting up user and role limits

User limit checking order

Checking each user limit proceeds sequentially. First, their own limit is checked. If it is not specified, the user's role limits are checked. If several roles have this limit specified, the most extended one is selected. If the user's roles also do not have a limit specified, the base limit is used.

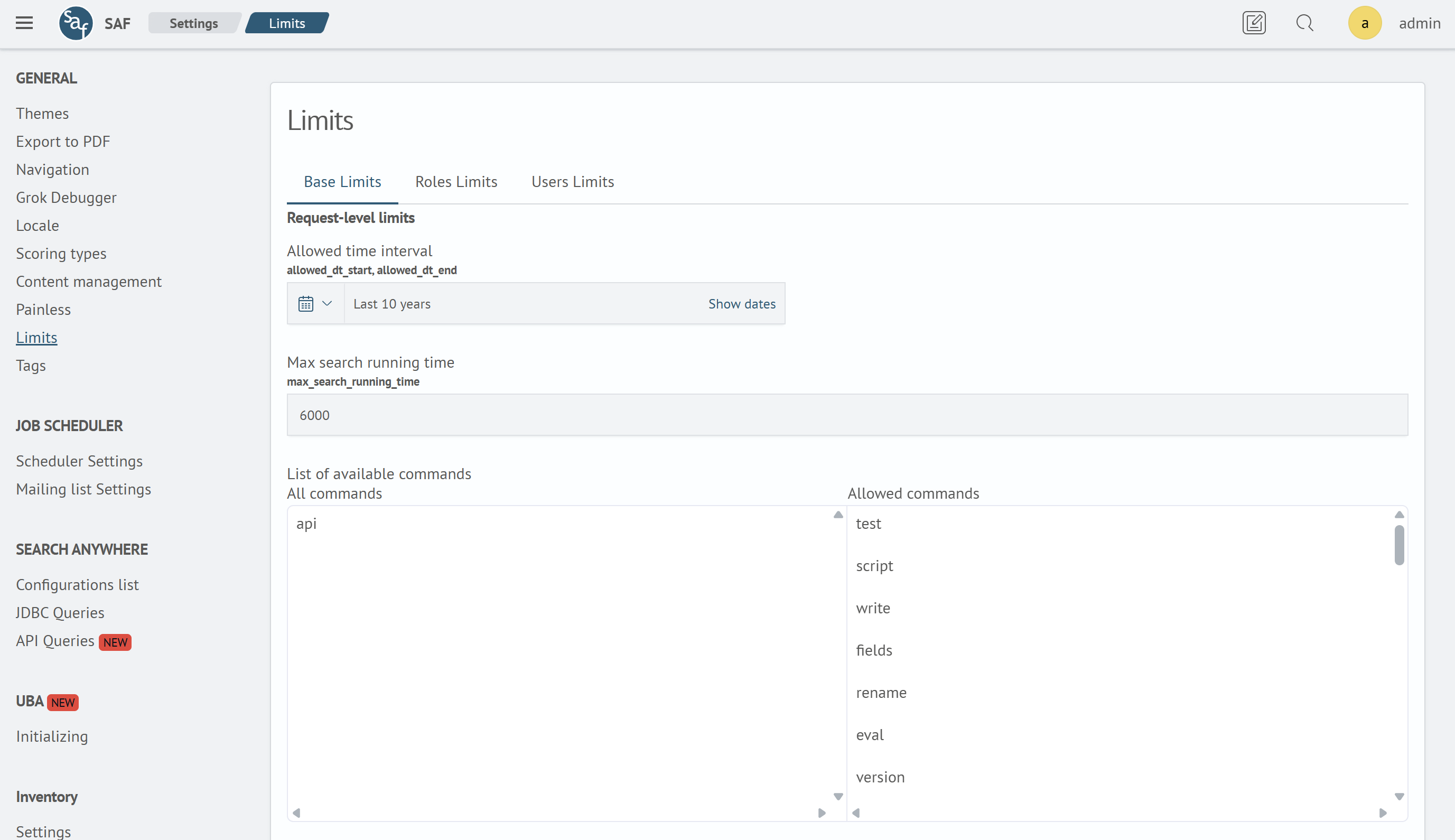

Limits can be configured through the interface available in the navigation menu at Settings - Management - Limits.

In this section of Search Anywhere Framework, you can configure base limits, limits for individual roles or users.

Configuration example

The user has been assigned the following limits:

Name	Value
max_qsize	500
allowed_commands	source stats eval

The user also has roles developer and user. Limits for role developer:

Name	Value
max_search_running_time	500
allowed_commands	source streamstats eventstats

Limits for role user:

Name	Value
max_qsize	1000
allowed_dt_start	now-3w

After combining all types of limits, the following configuration is obtained:

Name	Value	Limit type
max_qsize	500	Personal
allowed_dt_start	now-3w	Personal
max_search_running_time	500	From role developer
allowed_commands	source stats eval streamstats eventstats	Combination of personal limit and role developer
allowed_dt_end	By default	Base
max_payload_row_count	By default	Base
max_payload_size	By default	Base
max_command_ram_usage	By default	Base

---

System limit settings

Limit settings are stored in _cluster/settings in the sme.core dictionary. The table below shows the limit settings and their default values.

Name	Description	Default value
enable_limits	Enable/disable limiting.	true
check_base_limit	Creates an index with limits if it is missing. Creates a base limit if it is missing in the limit index.	true
limits.index_name	Index name where limits are stored.	.sm_sme_limits_user
max_subsearch_hits_count	Maximum number of documents returned by a subquery.	50000
list_limit	Maximum number of values returned by the list function of the stats command.	100
sort_limit	Maximum number of documents sorted by the sort command.	10000

---

Limit parameters

Request startup limits

• allowed time interval: allowed_dt_start and allowed_dt_end
• list of available commands: allowed_commands
• maximum amount of requested data: max_qsize
• maximum number of parallel requests: max_parallel_request_count
• maximum volume of returned documents from lookup in bytes: max_lookup_size
• background task result lifetime: background_result_ttl
• total disk space for background task results: background_disk_quota

Please note!

Parameters max_lookup_size, background_result_ttl and background_disk_quota are not available for editing through the Search Anywhere Framework limit management interface. To change these parameters, you need to execute an API request through the Developer Console. An example of such a request is shown below:

POST .sm_sme_limits_user/_update/<document id>
{
  "doc": {
    "background_disk_quota": 5000000000,
    "background_result_ttl": 86400,
    "max_lookup_size": 500000000
  }
}

Request execution time limits

• maximum request execution time in seconds: max_search_running_time
• payload document count: max_payload_row_count
• payload size in bytes: max_payload_size
• amount of RAM allocated per thread in bytes: max_command_ram_usage

Command-specific limits

• number of documents returned by subqueries
• number of values processed by the list function of the stats command
• number of documents sorted by the sort command
