Service

Description​

A service represents either a monitored object component or a logical group of components. It helps configure metrics for health assessment and track how these metrics and other components affect its overall status.

Appointment​

Services enable you to:

  • Add metrics that are important for tracking
  • Add dependency on the state of other components or their metrics
  • Combine components into a group
  • Analyze changes in the state of the component

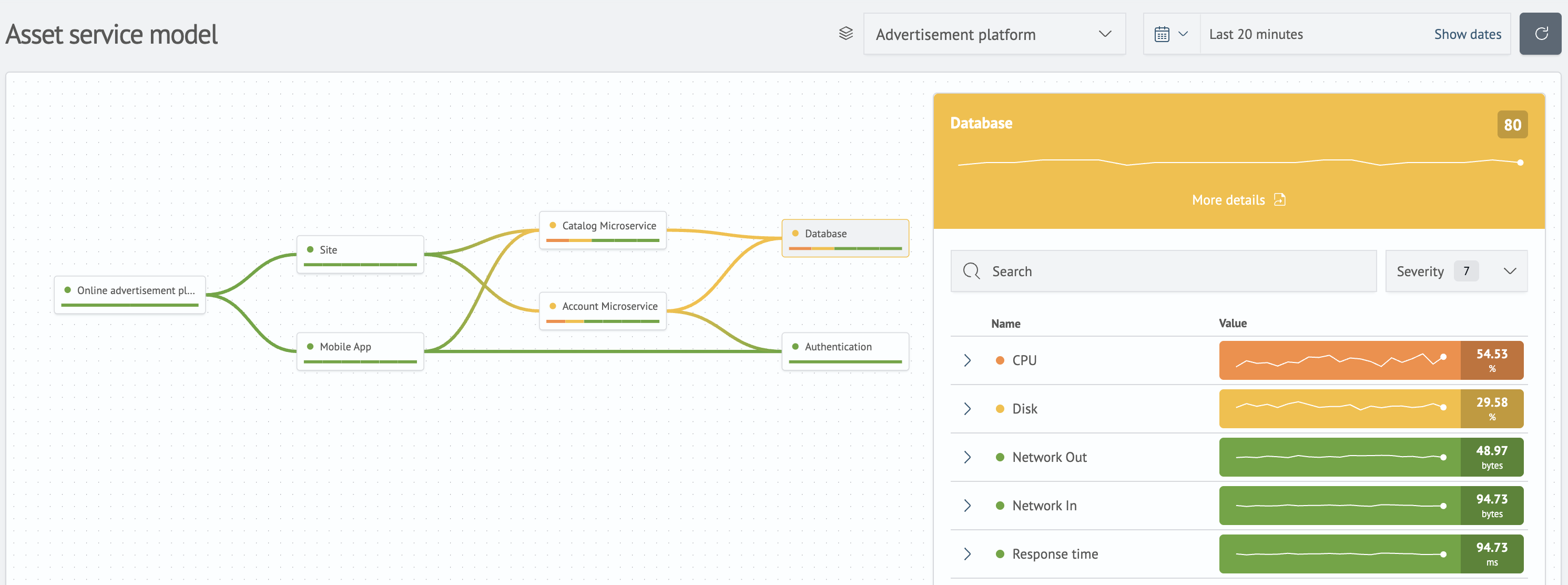

Visualization of services and their relationships as a graph.

Service representation on graph

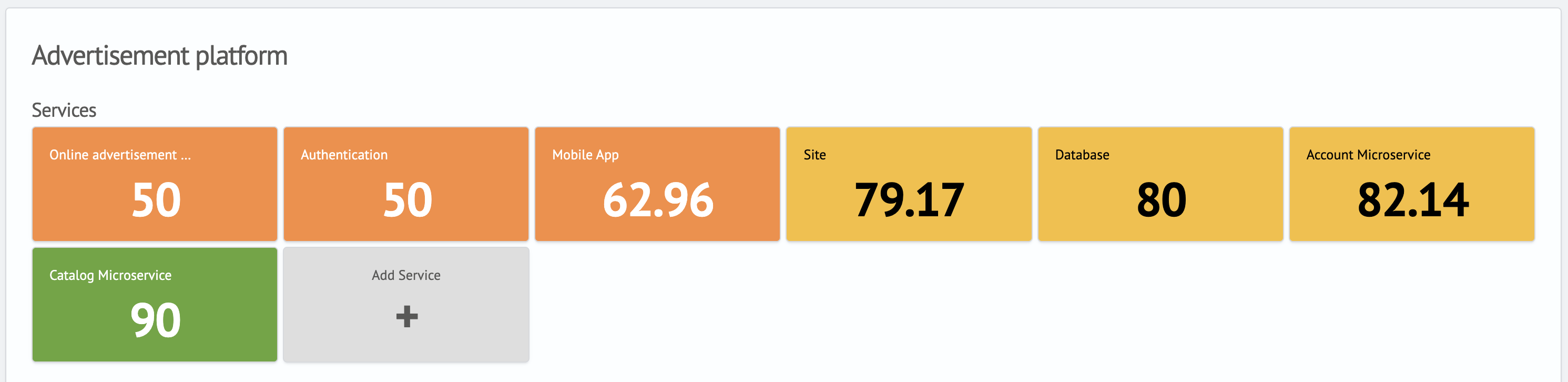

Tile-based view of services.

Service tiles

Service Dependency Configuration​

The configuration is divided into two tabs.

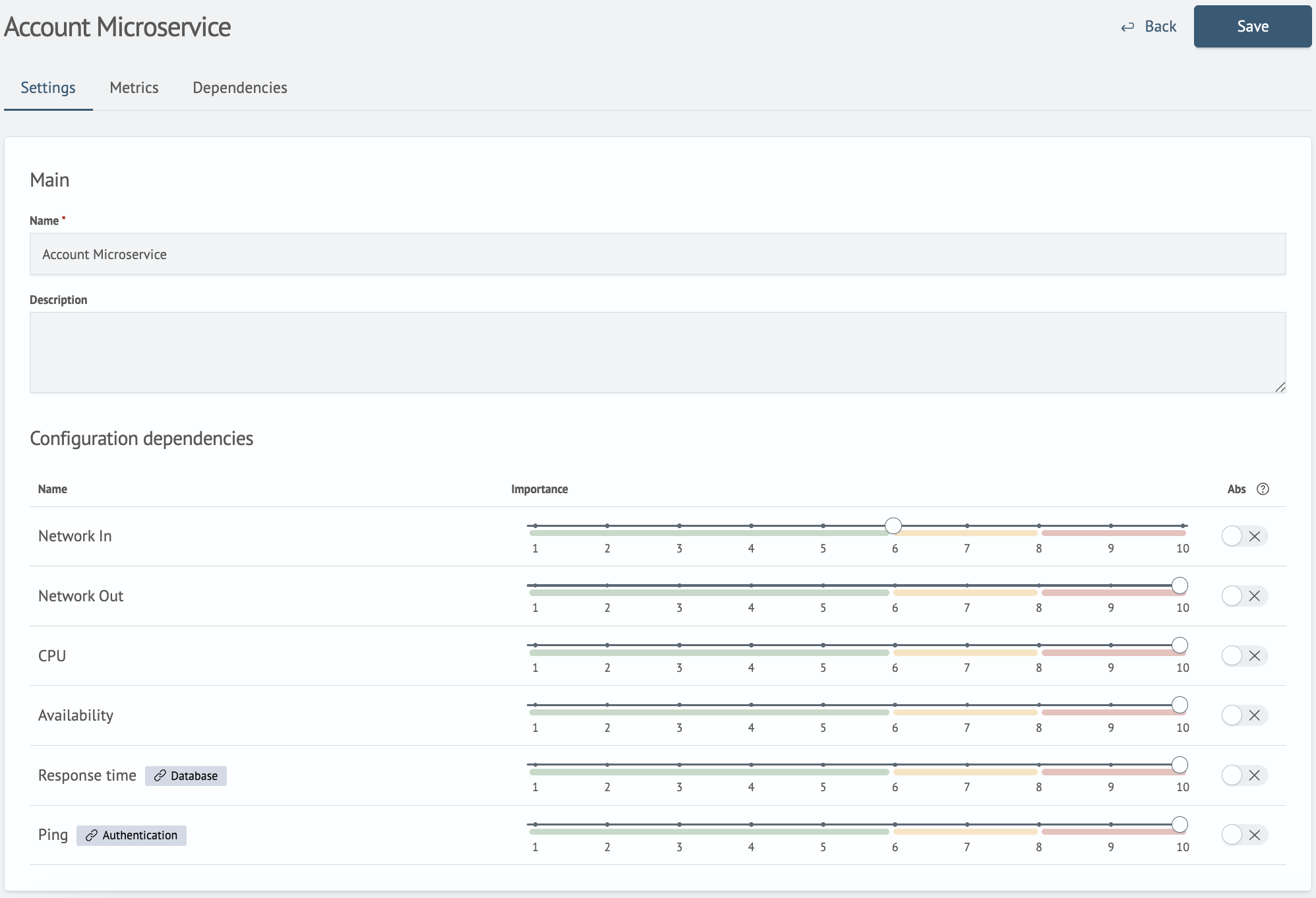

Example service configuration:

Настройка сервиса

Managing Dependency Impact​

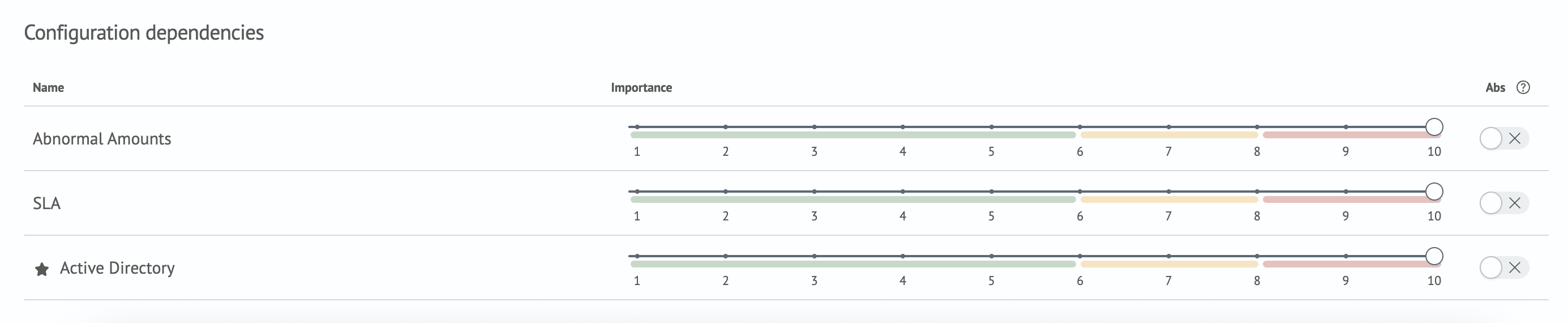

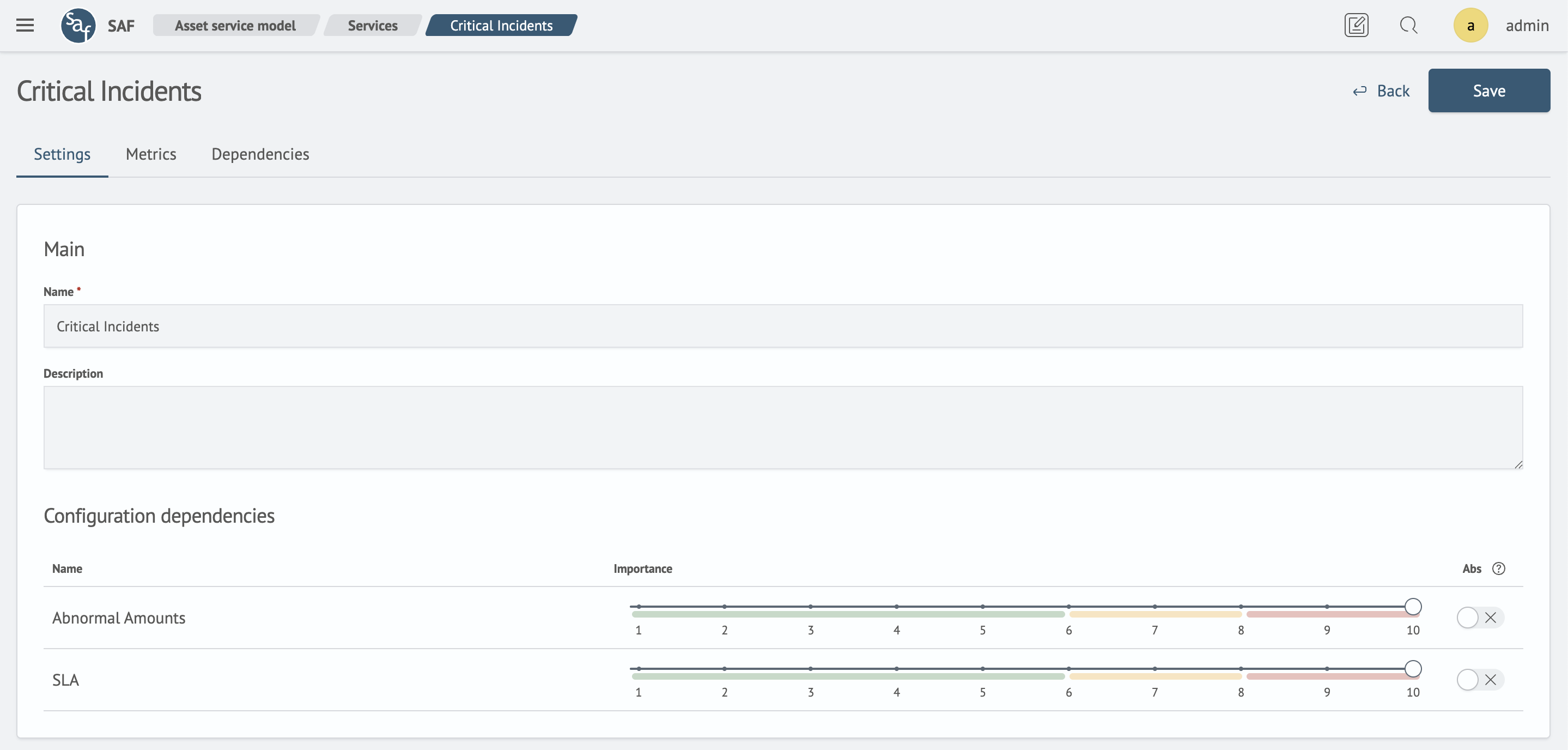

The main tab configures dependency influence:

Настройка влияния зависимостей

These settings allow you to:

  • set the impact level from 1 to 10, where 1 is the lowest impact and 10 is the highest
  • configure absolute impact (the Abs column)

The impact level setting adjusts the priority of metric calculations.

Binding Dependencies​

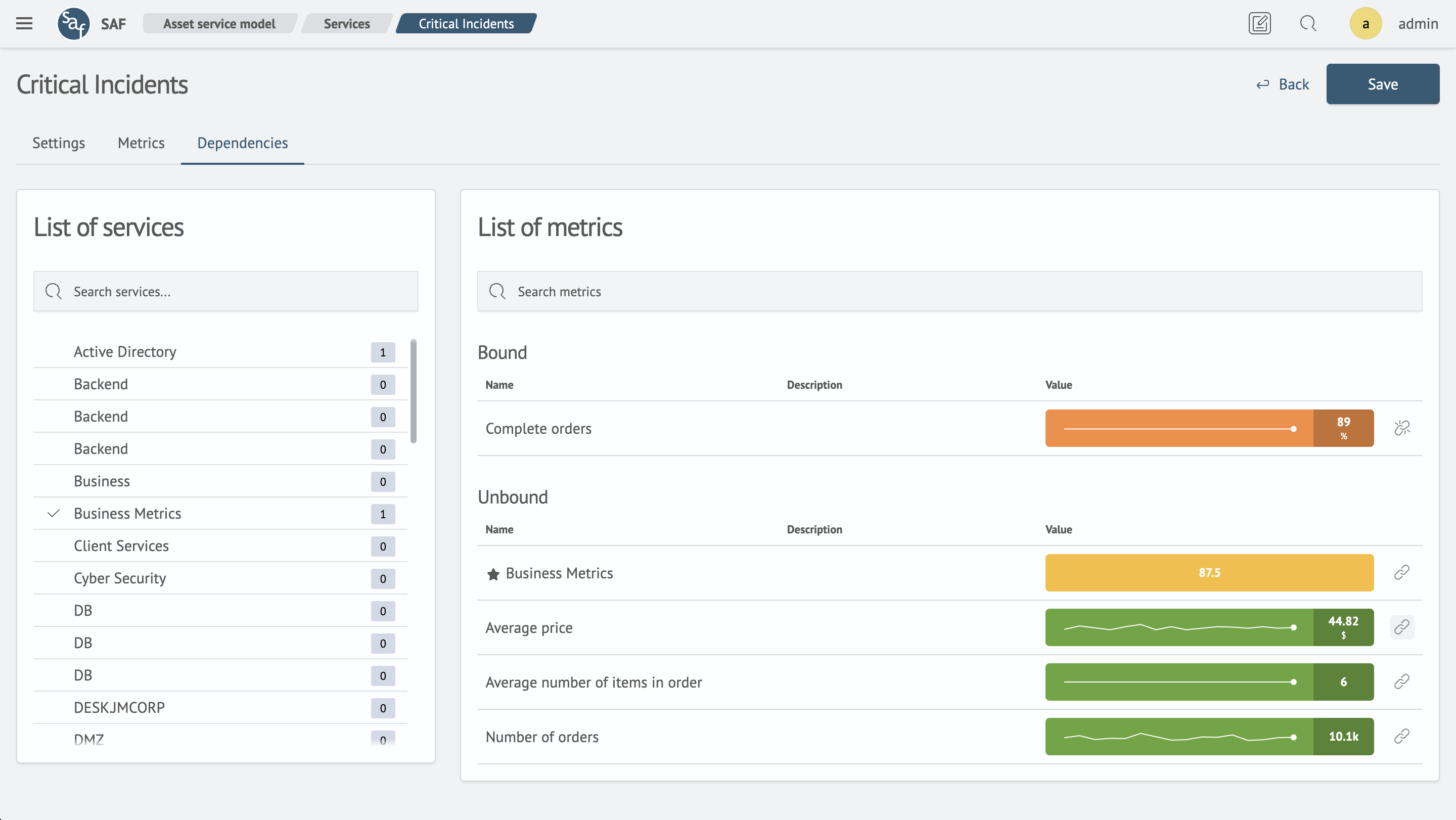

The Dependencies tab manages binding:

Настройка зависимостей сервиса

To bind a dependency:

  1. Select the required service in the left column
  2. In the Unbound table on the right, select the desired metrics
  3. Click the chain link icon

To unbind, click the broken chain icon in the Bound table.

note

A metric with a star icon is a service health metric.
